This triple-video docking station for laptops merges cutting-edge technology and high-quality hardware with innovative design elements. It’s one of the first universal laptop docking stations to support three external displays.
When coupled with your laptop display, the docking station makes it easy to create a high-performance, high-resolution workstation with four displays in total, including one 4K DisplayPort™ display.
With its expanded display presence, this specialty docking station is ideal for a wide range of applications. It offers a fast and easy way to maximize your laptop’s workable screen space, which is perfect for graphic and web designers, animators, financial analysts and more.
The triple-video docking station uniquely integrates two video chipsets, making it possible to connect one HDMI® and two DisplayPort monitors to your laptop. With four total displays, you can manage several programs at once and avoid the nuisance of minimizing or rearranging windows. Plus it delivers 4K cinema resolution to the first DisplayPort monitor.
This versatile docking station boosts your workflow with minimal impact on your budget, and it connects to your laptop or Windows based tablet through just one USB 3.0 (also known as USB 3.1 Gen 1 - 5Gbps) cable.
Why sacrifice image quality for display quantity? This top-of-the-line docking station offers the best of both worlds. It features three video ports, including a DisplayPort connection that supports 4K x 2K (3840 x 2160p - 30Hz) Ultra HD resolution.
The docking station offers an enhanced method of upgrading the display capabilities of your computer. While many laptop docks offer two video outputs, they often don’t support three external displays, or Ultra High Definition.
The full-featured dock delivers crystal-clear image quality without sacrificing the total number of external monitor connections, which is ideal for highly detailed and graphically intense applications.
This triple-video docking station lets you connect up to 12 peripherals, to transform your laptop into a powerful, full-sized workstation.
The dock also makes it easy to quickly charge your mobile devices, using the always-on fast-charge port. Plus, with five USB 3.0 ports, a headset jack, separate 3.5mm audio and microphone ports, as well as an RJ45 Gigabit Ethernet port, you have all the connections you need with no complications or extra costs.
Unlike some docks, this easy-to-use docking station offers seamless, error-free driver installation that will have you up and running fast.
The USB3DOCKH2DP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Maximum Supported Resolutions*

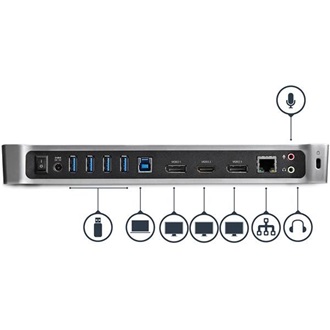

Video Output Configuration
Max DisplayPort Resolution(Video 1)
Max HDMI Resolution(Video 2)
Max DisplayPort Resolution(Video 3)
DisplayPort 1(Single Display)
3840 x 2160p (4K)
DisplayPort 2(Single Display)
2560 x 1600p
2560 x 1440p
DisplayPort 1 and HDMI(Two Displays)
DisplayPort 2 and HDMI(Two Displays)
2048 x 1152p
DisplayPort 1 and DisplayPort 2(Two Displays)
DisplayPort 1, DisplayPort 2, HDMI(Three Displays)
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
