- Heat-pipe Direct Touch Technology, Supports 230W Cooling Performance- Dual 13cm Over-clocking Fan, PWM controllable with 800~2,000 RPM Speed- Universal Socket Compatibility & Accessory Package
Heat-pipe Direct Touch Technology, Supports 230W Cooling Performance

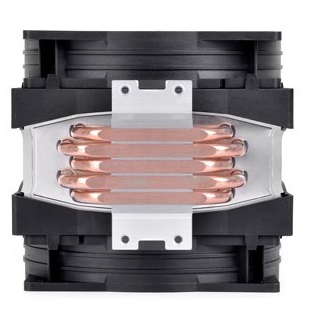

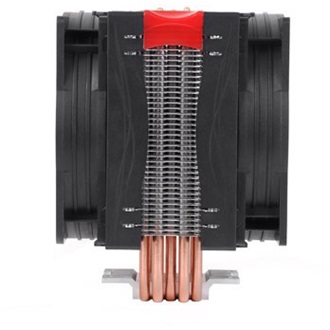

- 5 x Ø6 mm heat-pipes direct touch CPU surface increasing heat conductivity.- High density Aluminum fins allow larger surface area to quick dissipate heat.- Premium thermal grease maximizes heat transfer from the CPU into the cooler base for rapid dissipation.

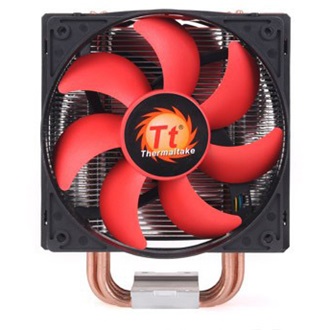

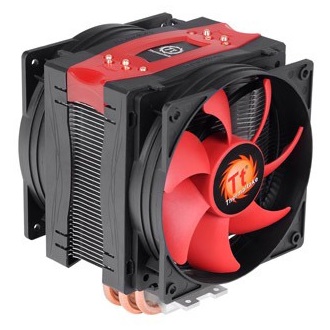

Dual 13cm Over-clocking Fan, PWM function with 800~2,100 RPM Speed
- A pair of high performance red bladed fans generate excellent cooling power.- Tool-less fan installation provides great convenience for users.- Vibration-absorbent gaskets decrease noise during operation.- Fan speed at the lowest RPM provides good performance and very low noise.

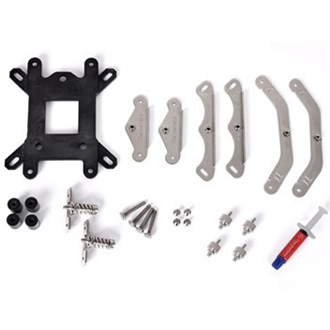

Universal Socket Compatibility & Accessory Package
- All-in-one back-plate design, offers support for all Intel and AMD platforms- Universal socket support : Intel: LGA 2011, LGA1366, LGA1156, LGA1155, LGA775AMD: FM1, AM3+, AM3, AM2+, AM2
Intel Motherboard Installation
Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers.
Step Two: Put the two Intel mounting bars along the four long screws and secure them with four nuts.
Step Three: Remove two fans from the cooler before installation.
Step Four: Securing the two T-mounting bars to the base of cooler by short screws.
Step Five: Applying a thin layer of thermal grease
Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly.
Step Seven: Place a fan to the fan duct at a slanted angle and push the top of fan until hearing a “click” sound. Repeat steps for the other fan.
Step Eight: Connect the 4-pin wire to the motherboard’s CPU fan connector. Installation is done.
AMD Motherboard Installation
Step Two: Put the two AMD mounting bars along the four long screws and secure them with the four nuts.
