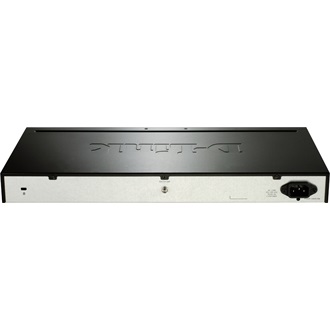

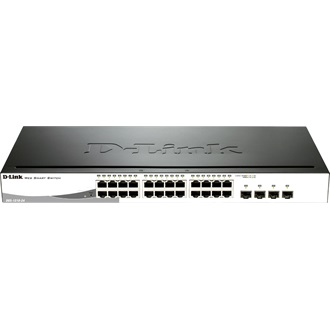

D-Link DGS-1210-24P PoE switch

Interface



Number of 10/100/1000BASE-TX ports

• DGS-1210-08P - 8 ports
• DGS-1210-16 - 16 ports
• DGS-1210-24 - 24 ports
• DGS-1210-24P - 24 ports
• DGS-1210-48 - 44 ports



Number of SFP ports

• DGS-1210-08P - 2 ports
•



Number of Combo 1000Base-T/SFP ports

• DGS-1210-16 - 4 ports
• DGS-1210-24 - 4 ports
• DGS-1210-24P - 4 ports
• DGS-1210-48 - 4 ports



PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

• DGS-1210-08P (802.3af/802.3at/8 ports/65W)
• DGS-1210-24P (802.3af/802.3at/24 ports/193W)



Performance



Switch Capacity

• DGS-1210-08P - 20 Gbps
• DGS-1210-16 - 40 Gbps
• DGS-1210-24 - 56 Gbps
• DGS-1210-24P - 56 Gbps
• DGS-1210-48 - 96 Gbps



64-Byte Packet Forwarding Rate

• DGS-1210-08P - 14.9 Mpps
• DGS-1210-16 - 29.8 Mpps
• DGS-1210-24 - 41.7 Mpps
• DGS-1210-24P - 41.7 Mpps
• DGS-1210-48 - 71.4 Mpps



MAC Address Table Size

• 16K



Packet Buffer

• DGS-1210-08P/16/24/24P - 4.1 MB
• DGS-1210-48 - 12 MB



Jumbo Frame

• Up to 10,000 Bytes



Diagnostic LED Indicators



DGS-1210-16, DGS-1210-24, DGS-1210-48

• Power (per device)
• Link/Activity/Speed (per 10/100/1000 Mbps port)
• Link/Activity/Speed (per combo port)



DGS-1210-08P

• Power (per device)
• Link/Activity/Speed/PoE (per 10/100/1000 Mbps port)
• Link/Activity/Speed (per SFP port)
• Button to switch LED display mode between PoE and Link/ActivityPower (per device)



DGS-1210-24P

• Power (per device)
• Fan (per device)
• Link/Activity/Speed/PoE (per 10/100/1000Base-T port)
• Link/Activity/Speed (per combo port)
• Button to switch LED display mode between PoE and Link/Activity

Physical & Environmental



Power Consumption (Standby/Maximum)

• DGS-1210-08P - 2.5W / 80.6W
• DGS-1210-16 - 5.56W / 13.02W
• DGS-1210-24 - 6.55W / 16.94W
• DGS-1210-24P - 16.6W / 247.4W
• DGS-1210-48 - 13.9W / 34.2W



Power Input

• 10 to 240 VAC, 50/60HZ internal universal power supply



Dimensions (W x D x H)

• DGS-1210-08P - 280 x 126 x 44 mm
• DGS-1210-16 - 280 x 180 x 44 mm
• DGS-1210-24 - 440 x 140 x 44 mm
• DGS-1210-24P - 441 x 250 x 44 mm
• DGS-1210-48 - 440 x 210 x 44 mm



Size

• 19-inch standard rackmounting width or with rackmountable brackets
• 1U Height



Ventilation

• DGS-1210-08P - fanless
• DGS-1210-16 - fanless
• DGS-1210-24 - fanless
• DGS-1210-24P - 1 fan
• DGS-1210-48 - fanless



Heat Dissipation

• DGS-1210-08P - 275.04 BTU per hour
• DGS-1210-16 - 44.41 BTU per hour
• DGS-1210-24 - 57.79 BTU per hour
• DGS-1210-24P - 844.23 BTU per hour
• DGS-1210-48 - 116.7 BTU per hour



Temperature



• Operating: -5° to 50°C (23° to 112°F)
• Storage: -20° to 70°C (-4° to 158°F )



Humidity

• Operating: 0% ~ 95% non-condensing
• Storage: 0% ~ 95% non-condensing



Certification

• CE Class A



Safety

• cUL, LVD



Software Feature



L2 Features

• MAC Address Table: 8K
• Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
• Jumbo Frame up to 10,000 Bytes
• IGMP Snooping
  • IGMP v1/v2 Snooping
  • IGMP Snooping v3 Awareness
  • Supports 256 IGMP groups
  • Supports at least 64 static multicast addresses
  • IGMP per VLAN
  • Supports IGMP Snooping Querier
• MLD Snooping
  • Supports MLD v1/v2 awareness
  • Supports 256 groups
  • Fast Leave
• Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
• Loopback Detection
• 802.3ad Link Aggregation
  • Max. 4 groups per device/8 ports per group (DGS-1210-08P)
  • Max. 8 groups per device/8 ports per group (DGS-1210-16/24/24P)
  • Max. 16 groups per device/8 ports per group (DGS-1210-48P)
• Port Mirroring
  • One-to-One, Many-to-One
  • Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
  • Forwards all unregistered groups
  • Filters all unregistered groups
  • LLDP, LLDP-MED





VLAN

• 802.1Q Tagged VLAN
• VLAN Group
  • Max. 256 static VLAN groups
  • Max. 4094 VIDs
• Management VLAN
• Asymmetric VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN





Quality of Service (QoS)

• 802.1p Quality of Service
• Queue Handling
  • Strict
  • Weighted Round Robin (WRR)
• 8 queues per port
• Bandwidth Control
  • Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 16 Kb/s)
• CoS based on
  • 802.1p Priority Queues
  • DSCP
  • ToS
  • TCP/UDP port number
  • IPv6 traffic class





Access Control List (ACL)

• Single or multiple ports (each rule)
• ACL based on
  • MAC Address
  • IPv4 Address (ICMP/IGMP/TCP/UDP)
  • IPv6 Address (ICMP/TCP/UDP)1
  • 802.1p
  • DSCP
  • Ether type
  • IPv6 traffic class
• ACL Actions
  • Permit
  • Deny
• Max. 6 profiles
• Max.768 entries
• Single or multiple ports (each rule)

Security

• Port Security
  • Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Static MAC
• D-Link Safeguard Engine
• DHCP Server Screening
• Trusted Host
• ARP Spoofing Prevention
  • Max. 64 entries
• SSL
  • Supports v1/v2/v3
  • Supports IPv4/IPv6
• Traffic Segmentation
• Smart Binding
  • Discover connected devices and click to bind
  • ARP Packet Inspection: 256 entries
  • IP/4/IPv6 Packet Inspection: 127/63 entries
  • Supports DHCP Snooping





AAA

• 802.1X Port-based Authentication
  • Supports RADIUS Server
  • Supports EAP, OTP, TLS, TTLS, PEAP





OAM

• Cable Diagnostics
• Factory Reset





MIB

• 1213 MIB II
• 1493 Bridge MIB
• 1907 SNMP v2 MIB
• 1215 Trap Convention MIB
• 2233 Interface Group MIB
• D-Link Private MIB
• Power-Ethernet MIB
• LLDP MIB
• D-Link ZoneDefense MIB¹





RFC Standard Compliance

• RFC 783 TFTP
• RFC 854 Telnet Server
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II, IF MIB
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1542 BootP/DHCP Client
• RFC 1769 SNTP
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2068 FCS
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC 2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2616 FCS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• RFC 3621 Power Ethernet MIB





Management

• Multi-Language Web-based GUI
• SmartConsole Utility
• Telnet Server
• TFTP Client
• IPv6 Neighbor Discovery
• Configurable MDI/MDIX
• SNMP
  • Supports v1, v2, v3
• SNMP Trap
• System Log
• BootP/DHCP Client
• D-Link Network Assistant support
• SNTP
• ICMPv6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1





Power Saving Technology

• 802.3az Energy Efficient Ethernet (EEE) (disabled by default)
• Power Saving by:
  • Link Status
  • Cable Length detection
  • LED or Port Shut-off
  • Port Standby mode
  • System Hibernation mode
  • Time-based PoE (PoE model only)
