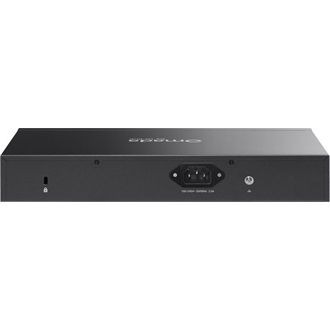

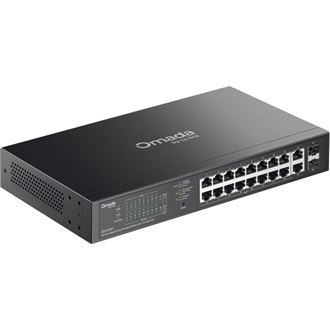

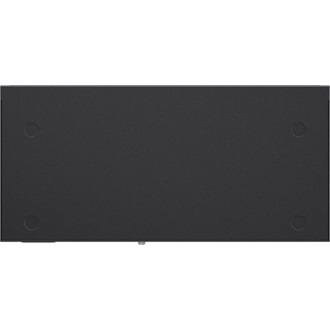

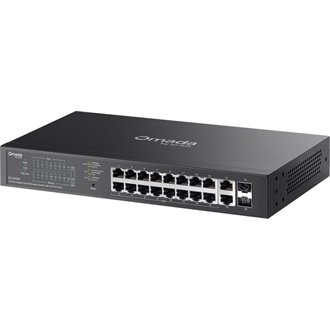

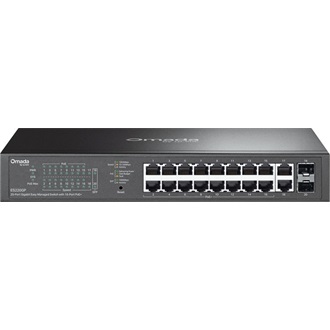

TP-LINK Switch 20x1000Mbps(16xPOE+) + 2xSFP Fémházas Easy Smart (Omada), ES220GP

Name: TP-LINK Switch 20x1000Mbps(16xPOE+) + 2xSFP Fémházas Easy Smart (Omada), ES220GP
Brand: TP-Link
SKU: NET004302
Price: 108000 HUF
Availability: OutOfStock

Gyártói cikkszám:

ES220GP

Termék ára:

108 000 Ft (bruttó)

darab

Garancia:

60 hónap szakszerviz Garanciális útmutató»

TP-LINK Switch 20x1000Mbps(16xPOE+) + 2xSFP Fémházas Easy Smart (Omada), ES220GP

HASONLÓ TERMÉKEK

TARTOZÉKOK-KIEGÉSZÍTŐK

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

Garancia: 5 Év

HARDWARE FEATURES
Interface	• 18× 10/100/1000 Mbps RJ45 ports • 2× Gigabit SFP slots
Fan Quantity	Fanless
Installation	Desktop/Rackmount Installation
Physical Security Lock	?
Power Supply	100-240V~ 50/60Hz 2.5A
PoE Ports (RJ45)	• Standard: IEEE 802.3: Ethernet Media Access Control (MAC) Protocol; IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical ffber); IEEE 802.3x: Flow Control IEEE 802.1p: Trafffc Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port
Dimensions ( W x D x H )	11.6×7.1×1.7 in (294×180×44 mm)
Surge Protection	Ethernet port: ±6 kV in common mode Power port: ±4 kV in differential mode; ±4 kV in common mode

PERFORMANCE
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^?
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 8 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Trafffc Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES220GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
Environment	• Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
