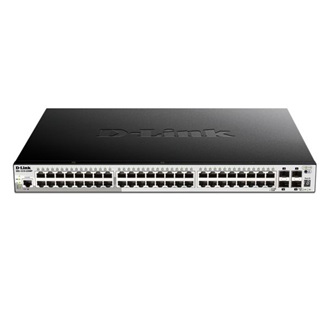

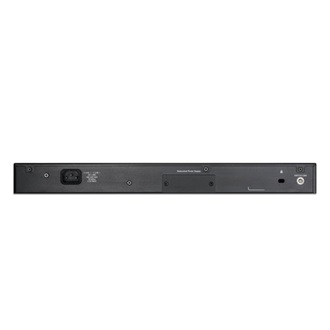

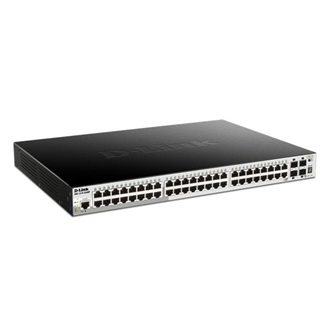

D-Link DGS-1510-52XMP Stackable PoE switch

Name: D-Link DGS-1510-52XMP Stackable PoE switch
Brand: D-Link
SKU: NET002025
Price: 778400 HUF
Availability: OutOfStock

LAN (1Gb/s): 48 port, SFP+: 4db, menedzselhető, energiafelhasználás: 487W, szürke-fekete

Gyártói cikkszám:

DGS-1510-52XMP

Termék ára:

778 400 Ft (bruttó)

darab

Garancia:

60 hónap szakszerviz Garanciális útmutató»

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

Fő tulajdonságok
- modell

  DGS-1510-52XMP Stackable
- fő tulajdonság

  switch
- PoE

  igen
Csatlakozók
- LAN (1Gb/s)

  48 port
- PoE port

  48 port
- SFP+

  4db
Fizikai jellemzők
- tömeg

  5,41g
- szín

  szürke-fekete
Egyéb tulajdonságok
- energiafelhasználás

  487W
- menedzselhető

  igen

Garancia: 5 Év

	General
Hardware version	A1
	• IEEE 802.3 10BASE-T Ethernet
	• IEEE 802.3u 100BASE-TX Fast Ethernet
Port Standards & Functions	• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	• 802.3ae 10 GbE
	• IEEE 802.3x Flow Control for Full-Duplex Mode
	• Auto-negotiation
Number of Ports	48 10/100/1000 Mbps PoE capable, 4 10G SFP+
Network Cables	• UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex	• Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange	• Auto or configurable MDI/MDIX
	Performance
Switching Capacity	176 Gbps
Transmission Method	• Store-and-forward
MAC Address Table	• 16,000 entries per device
MAC Address Update	• Up to 512 static MAC entries,
	• Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate	130.95 Mpps
Packet Buffer Memory	3 MB per device
PoE Standard	IEEE 802.3af, 802.3at
PoE Capable Ports Ports	1 to 48: up to 30 W
PoE Power Budget	Max 370 W (without DPS-700); Max. 740W (with DPS-700)
	Physical & Environmental
AC Input	• 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption	486.9 W (PoE on), 58.8 W (PoE off)
Standby Power Consumption	40.1 W
Smart Fan Quantity	4
Acoustics	55.4 dB(A)
Heat Dissipation	1660.33 BTU/hr
Operation Temperature	• 23 to 122 °F (-5 to 50 °C)
Storage Temperature	• -4 to 158 °F (-20 to 70°C)
Operation Humidity	• 0% to 95% non-condensing
Storage Humidity	• 0% to 95% non-condensing
Dimensions	• 17.36 x 9.84 x 1.73 inches (440 x 250 x 44 mm)
	• 19” standard rack mounting width; 1U
Weight	11.93 lbs (5.41 kg)
	• Power/Stacking ID/Fan (per device),
Diagnostic LEDs	• Link/Activity/Speed (per 10/100/1000 Mbps port),
	• Link/Activity/Speed (per Gigabit SFP port),
	• Link/Activity/Speed (per 10G SFP+ port)
Certifications	• CE, FCC, C-Tick, VCCI, BSMI, CCC
	• IPv6 Ready Logo Phase 2 (DGS-1510-20/-28/-28X/-28P/-28XMP only)
Safety	• cUL, CB
MTBF	416,789 hr.
	Software Features
	• Virtual Stacking Support
	• D-Link Single IP Management
	• Up to 32 devices per virtual stack
Stackability	• Up to 20G stacking bandwidth
	• Physical Stacking
	• Supports Duplex Chain/Ring topology
	• Up to 40G stacking bandwidth full duplex
	• Up to 6 units per stack
	• MAC Address Table: up to 16,384
	• Flow Control
	• 802.3x Flow Control
	• HOL Blocking Prevention
	• Jumbo Frame up to 9,216 Bytes
	• IGMP Snooping
	• IGMP v1/v2 Snooping
	• IGMP v3 awareness
	• Supports 512 IGMP groups
	• Supports 128 static multicast addresses
	• IGMP per VLAN
	• Supports IGMP Snooping Querier
	• Host-based IGMP Snooping Fast Leave
L2 Features	• MLD Snooping
	• Supports MLD v1/v2 awareness
	• Supports 512 groups
	• Supports 128 Static Multicast Addresses
	• Per VLAN MLD Snooping
	• Host-based MLD Fast Leave
	• MLD Snooping Querier
	• Spanning Tree Protocol
	• 802.1D STP
	• 802.1w RSTP
	• 802.1s MSTP
	• Loopback Detection
	• 802.3ad Link Aggregation
	• Max. 32 groups per device/8 ports per group
	• Port Mirroring
	• Support 4 mirroring groups
	• One-to-one, many-to-one, flow-based (ACL) mirroring
	• Multicast Filtering
	• Forwards all unregistered groups
	• Filters all unregistered groups
	• ERPS (Ethernet Ring Protection Switching)
	• 802.1Q Tagged VLAN
	• 4K VLAN Groups
	• Configurable VID: 0~4094
	• GVRP
VLAN	• Asymmetric VLAN
	• Auto Voice VLAN
	• Auto Surveillance VLAN
	• MAC-based VLAN
	• Protocol-based VLAN
	• CoS based on
	• 802.1p priority
	• VLAN
	• MAC address
	• Ether type
	• IP address
	• DSCP
	• Protocol type
	• TCP/UDP port number
	• DSCP of IPv6 Traffic Class
Quality of Service (QoS)	• IPv6 flow label
	• 802.1p Quality of Service
	• Queue Handling
	• Strict Priority Queue (SPQ)
	• Weighted Round Robin (WRR)
	• Deficit Round Robin (DRR)
	• SPQ + WRR
	• 8 queues per port
	• Bandwidth Control
	• Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)
	• ARP
	• 256 Static ARP
	• Supports Gratuitous ARP
	• IPv6 Neighbor Discovery (ND)
	• 16 IP Interfaces
L3 Features	• Default Routing
	• Static Routing
	• 64 IPv4 Static Route Entries
	• 32 IPv6 Static Route Entries
	• UDP helper
	• ACL based on
	• 802.1p priority
	• VLAN
	• MAC address
	• Ether type
	• IP address
	• DSCP
	• Protocol type
	• TCP/UDP port number
Access Control List (ACL)	• DSCP of IPv6 Traffic Class
	• IPv6 flow label
	• ACL Actions
	• Permit
	• Deny
	• Max. 256 access list
	• Max. 768 rules
	• Single or multiple ports (each rule)
	• Time-based ACL
	• ACL Statistics
	• Port Security
	• Supports up to 128 MAC addresses per port
	• Broadcast/Multicast/Unicast Storm Control
	• Dynamic ARP Inspection
	• D-Link Safeguard Engine
	• DHCP Server Screening
	• ARP Spoofing Prevention
	• Max. 64 entries
	• SSH
	• Supports v2
	• Supports IPv4/IPv6
	• BPDU Attack Protection
	• DoS Attack Prevention
Security	• SSL
	• Supports v1/v2/v3
	• Supports IPv4/IPv6
	• Traffic Segmentation
	• IP-MAC-Port Binding
	• DHCP snooping
	• IP Source Guard
	• Dynamic ARP inspection
	• IPv6 DHCP Guard
	• IPv6 RA Guard
	• IPv6 Snooping
	• IPv6 Source Guard
	• IPv6 ND Inspection
	Optional Gigabit SFP Transceivers
	• DEM-310GT 1000BASE-LX Transceiver, single-mode, 10 km
	• DEM-311GT 1000BASE-SX Transceiver, multimode, 550 m
	• DGS-712 1000BASE-T to SFP Transceiver
	Optional 10GbE SFP+ Transceivers
	• DEM-431XT 10GBASE-SR Multimode SFP+ Optical Transceiver, 0 to 70C
	• DEM-431XT-DD 10GBASE-SR Multimode SFP+ Optical Transceiver with DDM, 0 to 70C
	• DEM-432XT 10GBASE-LR Single-mode SFP+ Optical Transceiver, 0 to 70C
	• DEM-432XT-DD 10GBASE-LR Single-mode SFP+ Optical Transceiver with DDM, 0 to 70C
	Optional SFP+ Direct Attach Copper Stacking Cables
	• DEM-CB100S 10-GbE SFP+ 1 m Direct Attach Cable
	• DEM-CB300S 10-GbE SFP+ 3 m Direct Attach Cable
	Optional Redundant Power Supplies
	• DPS-700 AC Redundant Power Supply for DGS-1510-52XMP only
