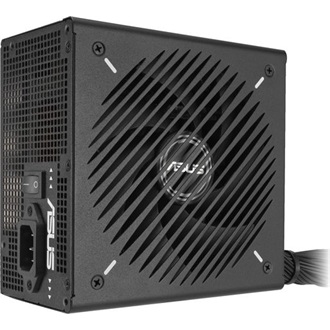

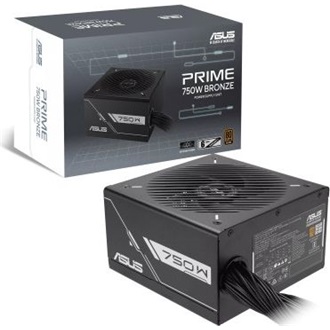

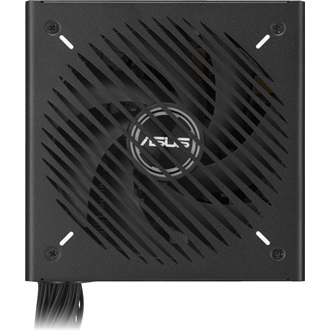

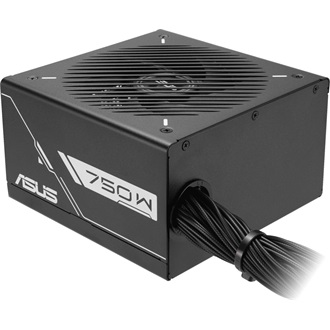

Asus Prime 750B ATX desktop tápegység 750W 80+ Bronze BOX

Model

PRIME-750B-BLACK

Intel Specification

ATX12V

PFC Type

Active PFC

ATX 3.0

No

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Bronze

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 62.5A 0.3A 2.5A

Combined Load

120W 120W 750W 3.6W 12.5W

Total Output

750W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power cable x 1 (600mm)
CPU cable x 2 (800mm)
PCI-E 1-to-2 x 1 (600mm)
PCI-E 1-to-1 x 1 (600mm)
SATA 1-to-3 cable x 2 (400+120+120+mm)
Peripheral 1-to-3 cable x 1 (400+120+120mm)
User Manual x 1

Weight

Single PSU : 2.2KG
Product Weight (with packing) : 3.067KG

0dB Technology

No

0dB Fan Button

No, this product is without 0dB technology.
