EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) CN: FDD-LTE: B1/B3/B5/B8 (2100/1800/850/900 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
N300
300 Mbps
IEEE 802.11b/g/n
2.4 GHz
11g 54M: -74.5 dBm 11n HT20 MCS7: -73.5 dBm 11n HT40 MCS7: -70.5 dBm
< 20 dBm (2.4 GHz)
WPA-PSK / WPA2-PSK
smart connect WPS Wireless Schedule Wireless Clients Statistics
219 × 140 × 32 mm
(8.62 × 5.51 × 1.26 in)

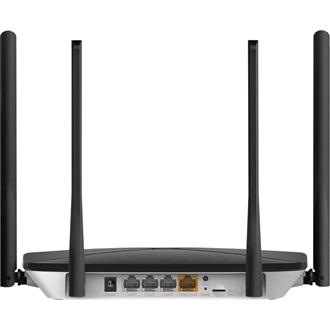

1× 10/100Mbps LAN/WAN Port
3× 10/100Mbps LAN Ports
1× Nano SIM Card Slot

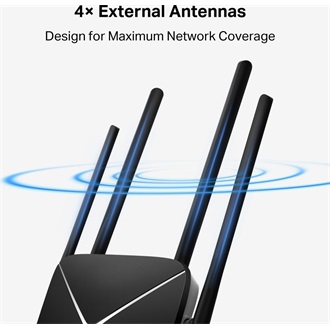

2× External 4G LTE Antennas, 2× External Wi-Fi Antennas
WPS?Reset Button
9V/0.85A
1× Power 1× Internet 1× LAN 3× Signal
Cat 4 150/50Mbps DL/UL
3G/4G Router Wireless Router
4G Preferred 4G Only 3G Only
Data Roaming Network Search Profile Create APN Settings ISP File Upgrade PIN Management
Dynamic IP Static IP PPPoE PPTP L2TP
ALG Virtual Server Port Triggering UPnP DMZ
IPv4, IPv6
Data Statistics Data Limit
Time Control Website Filtering
2.4 GHz Guest Network
Server DHCP Client List Address Reservation
MERCUSYS DDNS DynDns NO-IP
Inbox New Message Outbox Drafts
IPv4 SPI Firewall Access Control Service Filtering IP & MAC Binding IPv6 Firewall
Time Settings LED Control Diagnostics Firmware Upgrade Backup&Restore Reboot Administration System Log CWMP Settings
MERCUSYS APP Web GUI
English Spanish Italian Polish Russian
√

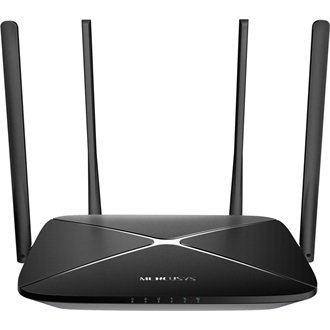

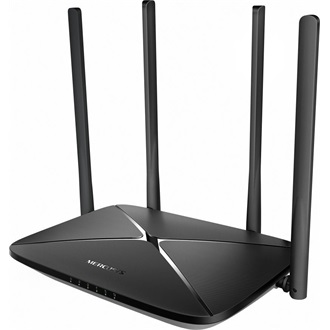

300 Mbps Wireless N 4G LTE Router (MB115-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
