TP-Link EAP603-Outdoor Omada kültéri Dual-Band Wi-Fi PoE access point

EQUIPMENT FEATURES

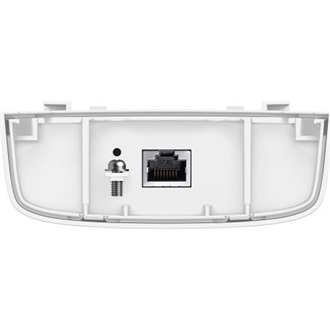

Interface • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in
• 1× Grounding Termina
1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
Power Supply Input: 802.3at PoE+: 42.5 - 57 V, 0.36A
Power Consumption • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up
to 1 Gbps, etc.
• Idle mode: 4.8W(PoE)
Dimensions (W × L × H) • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)
• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Wi-Fi Antenna
• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas
• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
*Note: The gains above are the single-antenna peak gains.

IoT
• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional
antennas
Bluetooth    Yes
IP66 for Wall Mount Weatherproof Enclosure
IP65 for Pole Mount

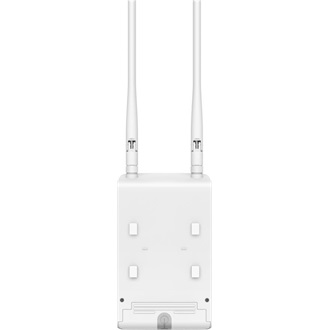

Mounting • Pole Mount (Kits included)
• Wall Mount (Kits included)
WIRELESS FEATURES
Maximum coverage area • 2.4 GHz: up to 2,150 ft (200 m)
• 5 GHz: up to 3,200 ft (300 m)
5 GHz wireless network standards: IEEE 802.11a/n/ac/ax
2.4 GHz: IEEE 802.11b/g/n/ax
Frequency • 5 GHz
• 2.4 GHz
Signal speed • 2.4 GHz: up to 573 Mbps
• 5 GHz: up to 1201 Mbps
*Note: Country-Specific Restriction Apply
Wireless Network Features • Maximum number of BSSIDs: 16 (8 on each band)
• Maximum number of associated STAs: 250+
• Guest Network
• ACS (Automatic Channel Selection)
• Airtime Fairness
• Band Steering
• 802.11 Rate Control
• Rogue AP Detection
• URL Filtering
• WLAN Optimization
• Lock to AP
• SSID/Client Rate Limit
• Load Balance
• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§
• Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
• QoS (Quality of Service)
Wireless Network Security • ACL
• MAC Filter
• 802.1X Authentication
• MAC-Based Authentication
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
• Radius Accounting
• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
Maximum transmit power:
CE (ERIP)
• 2.4 GHz: 20 dBm
• 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,
FCC (Conducted Power)
• 2.4 GHz: 25 dBm
• 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3

Minimum transmit power
CE (ERIP)
• 2.4 GHz: 7 dBm
• 5 GHz: 6 dBm in U-NII-1, 6 dBm in
