1/2.7'' Progressive Scan CMOS Not Starlight Sensor
Focal Length: 4 mm Aperture: F2.0 Field of View: 103° (Diagonal), 86°(Horizontal), 46°(Vertical)
Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 70° (116° Tilt Coverage)
850nm IR LED (40 ft / 12 m)
1× RESET Button 1× MicroSD Card Slot (Up to 512 GB)
3K 5MP (2880×1620 px)
Supports 13.5x zoom
15/20/25/30 fps (20 fps by default)
H.264
Yes
3DNR BLC
Built-in microphone and speaker
2-way audio
90dB (Level measured at 4-inch/10-cm distance)
Micro SD card slot (Supports up to 512GB)
MERCUSYS Camera Care Cloud Storage Services (Subscription required)
On-Device Machine Learning 128 bit AES encryption with SSL/TLS WPA/WPA2-PSK
Connect via Wi-Fi
11Mbps(802.11b) 54Mbps(802.11g) 72.2Mbps(802.11n)
/
9V DC Power Adapter
100-240VAC, 50/60Hz, 0.3A
9.0V/0.6A
Motion detection Person Detection Baby Crying Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection
System Notification
Google Assistant, Amazon Alexa, Samsung SmartThings
Tabletop Ceiling-Mounted
0 ºC ~ 40 ºC (32°F ~ 104°F )
-40°C~60°C (-40°F~140°F)
10%~90%RH, Non-condensing
0%~90%RH, Non-condensing
78.4 × 78.4 × 105.6 mm (3.09 × 3.09 × 4.16 in)
CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

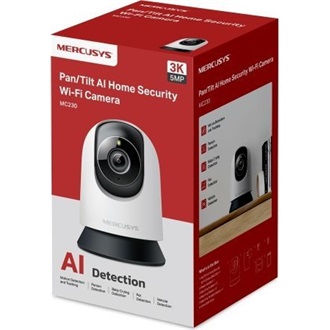

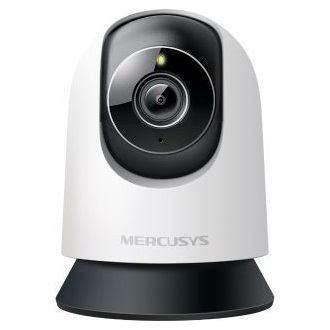

Pan/Tilt Home Security Wi-Fi Camera (MC230) × 1 Power Adapter × 1 Mounting Anchors × 2 Mounting Screws × 2 Mounting Template Sticker × 1 Quick Start Guide
