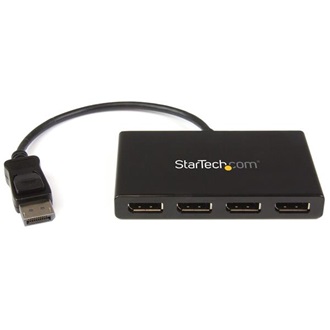

StarTech MST DisplayPort 4 portos HUB

Name: StarTech MST DisplayPort 4 portos HUB
Brand: StarTech
SKU: CAB002995
Price: 47900 HUF
Availability: OutOfStock

DisplayPort bemenet: 1db, DisplayPort kimenet: 4db

Gyártói cikkszám:

MSTDP124DP

Termék ára:

47 900 Ft (bruttó)

darab

Garancia:

24 hónap telephelyünkön Garanciális útmutató»

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

Fő tulajdonságok
- fő tulajdonság

  hub
- portok száma

  4-portos
- szín

  fekete
Bemeneti csatlakozók
- DisplayPort bemenet

  1db
Kimeneti csatlakozók
- DisplayPort kimenet

  4db
Fizikai jellemzők
- szélesség

  105mm
- magasság

  15mm
- mélység

  65mm
- tömeg

  500g

This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.

Connect to any display

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

Average resolution bandwidth allocation:

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Examples of supported resolution configurations:

Screen 1 Resolution	Screen 2 Resolution	Screen 3 Resolution	Screen 4 Resolution	Total % of Bandwidth
1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	88%
1920x1200 @60hz (30%)	1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	96%
3840x2160 @30hz (38%)	1920x1080 @60hz (22%)	1920x1080 @60hz (22%)	off	82%
3840x2160 @30hz (38%)	1920x1200 @30hz (30%)	1920x1080 @60hz (22%)	off	90%

Examples of unsupported resolution configurations

Screen 1 Resolution	Screen 2 Resolution	Screen 3 Resolution	Screen 4 Resolution	Total % of Bandwidth
2560x1600 @60hz (38%)	2560x1600 @60hz (38%)	1920x1200 @60hz (30%)	1920x1200 @60hz (30%)	136%
3840x2160 @30hz (38%)	2560x1600 @60hz (38%)	1920x1200 @60hz (30%)	1920x1200 @60hz (30%)	136%
3840x2160 @30hz (38%)	2560x1600 @60hz (38%)	2560x1440 @60hz (35%)	1920x1200 @60hz (30%)	141%
3840x2160 @30hz (38%)	3840x2160 @30hz (38%)	3840x2160 @30hz (38%)	off	114%

Common Customer Questions

View FAQs...

Compatible With

View full OS compatibility

Applications

Build a four display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Use one screen for reference data such as websites, while composing a report on another screen
Dock your DP 1.2 device and add four high-resolution displays to your workstation
Create a panoramic video wall for DisplayPort digital signage applications
Edit images, video or audio clips across four additional displays in any orientation or resolution
Perfect for spanning a spreadsheet/worksheet across additional displays, to avoid side-scrolling

Product Numbers

TechData Dis	11776612
ASI Distribution USA	169367
D and H	MSTDP124DP
Ingram Micro USA	1A1772
Synnex US	STA-MSTDP124DP
UPC Code	065030860581

* Product appearance and specifications are subject to change without notice.

* Same day shipping is only available for orders shipping within the United States.

Warranty Information
Warranty	2 Years
Hardware
Audio	Yes
Chipset ID	STDP4320
Converter Type	MST Hub
Output Signal	DisplayPort
Ports	4
Performance
Maximum Digital Resolutions	3840 x 2160 @30hz
Supported Resolutions	1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Male Input
Connector B	4 - DisplayPort (20 pin) Female Output
Software
OS Compatibility	Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64)
Power
Center Tip Polarity	Positive
Input Current	0.5 A
Input Voltage	110 ~ 240 AC
Output Current	3A
Output Voltage	5 DC
Plug Type	N
Power Source	AC Adapter Included
Environmental
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	0.6 in [15 mm]
Product Length	4.1 in [105 mm]
Product Weight	4.5 oz [127 g]
Product Width	2.6 in [65 mm]
Packaging Information
Shipping (Package) Weight	1.2 lb [0.5 kg]
What's in the Box
Included in Package	1 - 4-Port Multi Monitor DisplayPort™ MST Hub
	1 - Universal power adapter (NA/EU/UK/AUS)
	1 - Quick install guide
