StarTech PCI-E x1 4 portos soros port IO vezérlő

Name: StarTech PCI-E x1 4 portos soros port IO vezérlő
Brand: StarTech
SKU: CAB003221
Price: 58000 HUF
Availability: OutOfStock

illesztés: PCIe x1, soros port: 4db, low profile, RS232

Gyártói cikkszám:

PEX4S553

Termék ára:

58 000 Ft (bruttó)

darab

Garancia:

24 hónap telephelyünkön Garanciális útmutató»

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

Fő tulajdonságok
- fő tulajdonság

  IO vezérlő
- illesztés

  PCIe x1
- portok száma

  4 portos
- low profile

  igen
- rövid megjegyzés

  RS232
Csatlakozók
- soros port

  4db

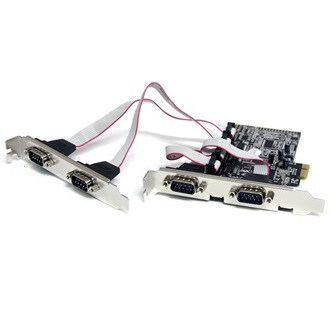

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.

Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.

The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
Standard and low profile/half-height brackets included to ensure fitment in any system

Performance
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	ASIX/MosChip - MCS9904CV-AA
Interface	Serial
Port Style	Integrated on Card
Ports	4
Data Bits	5, 6, 7, 8
FIFO	256 bytes
Max Baud Rate	128 Kbps
MTBF	26,280 Hours
Parity	5, 6, 7, 8
Serial Protocol	RS-232
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	4 - DB-9 (9 pin; D-Sub) Male
Software
Microsoft WHQL Certified	Yes
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.10 Linux
Environmental
Humidity	5~85% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (4°F to 140°F)
Physical Characteristics
Color	Green
Product Height	0.7 in [19 mm]
Product Length	4.7 in [120 mm]
Product Weight	2.8 oz [80 g]
Product Width	5.1 in [130 mm]
Packaging Information
Shipping (Package) Weight	0.5 lb [0.2 kg]
What's in the Box
Included in Package	1 - 4 Port PCI-Express RS-232 Serial Card
	1 - Bracket with 2 DB9 male ports
	4 - Low Profile Brackets
	1 - Driver CD
	1 - Instruction Manual
