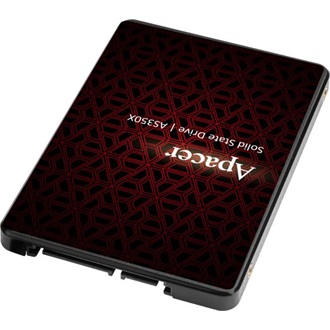

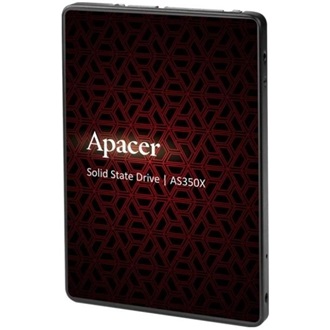

Apacer AS350X 1TB SATA3 2,5" SSD

Specifications Overview:
? Compliance with SATA Revision 3.1
– SATA 6.0 Gbps interface
– Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
? Capacity
– 128GB, 256GB, 512GB, 1TB
? Performance*
– Seq. Read / Write:
128GB : Up to 560 / 540 MB/s
256GB : Up to 560 / 540 MB/s
512GB : Up to 560 / 540 MB/s
1TB : Up to 560 / 540 MB/s
– (4K) Random Read / Write
128GB : Up to 38K / 75K IOPS
256GB : Up to 38K / 75K IOPS
512GB : Up to 87K / 80K IOPS
1TB : Up to 93K / 80K IOPS
? Flash Management
– Global Wear Leveling
– S.M.A.R.T.
– Power Failure Management
– TRIM
? NAND Flash Type: 3D NAND
? MTBF: 1,500,000 hours
? Endurance (in Terabytes Written: TBW)
– 128 GB: 75 TBW
– 256 GB: 180 TBW
– 512 GB: 425 TBW
– 1 TB: 835 TBW
? Temperature Range
– Operating:
Standard: 0°C to 70°C
– Storage: -40°C to 85°C
? Supply Voltage
– 5.0 V ± 5%
? Power Consumption*
– Active mode:
1,260 mW (128GB)
1,450 mW (256GB)
1,360 mW (512GB)
1,620 mW (1TB)
– Idle mode:
320 mW (128GB)
325 mW (256GB)
320 mW (512GB)
320 mW (1TB)
? Connector Type
– 7-pin SATA signal connector
– 15-pin SATA power connector
? Form Factor
– 2.5”
– Dimensions with 7mm enclosure:
100.00 x 69.85 x 6.90, unit: mm
? Shock & Vibration**
– Shock:1,500 G
– Vibration: 15 G
? SATA Power Management Modes
? RoHS Comply
