Dimension
124 x 120 x 49.7 mm
CPU
13th Gen Intel® Core™ i7-1355U Processor 10 Cores (2P+8E), 12 Threads, 12MB Cache Frequency up to 5.0GHz(P Core Turbo), 15W
Memory
2 x SO-DIMM DDR4 slot 3200MHz Max. 64GB
LAN
2.5 GbE LAN (Intel i226V)
Wifi Card
Intel AX203 Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
Graphics
Intel® Iris® Xe Graphics, 96EU, 1.3GHz
Audio
Realtek ALC269 HD audio
Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz 2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz
Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3) 1 x 2.5” slot for HDD/SSD (9.0mm thick; SATA3)

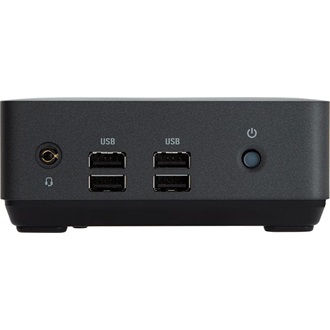

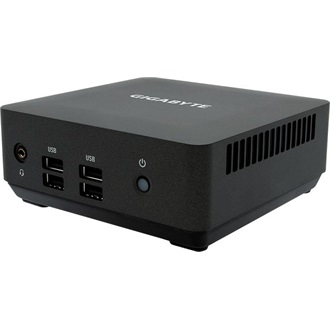

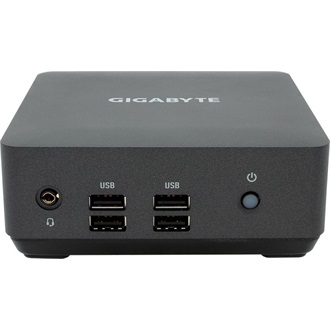

Front I/O
1 x Headphone / Microphone 2 x USB3.2 Gen2 Type-A 2 x USB2.0 Type-A 1 x Power Button

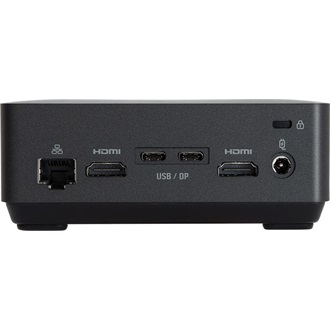

Rear I/O
1 x 2.5 GbE RJ45 2 x HDMI 2.1 2 x USB3.2 Gen2 Type-C with DP alt Mode 1 x Kensington Lock Slot 1 x DC-In
Power Supply
Input: AC 100-240V Output: DC 19.5V / 6.92A, 135W
VESA
VESA support Supports 75 x 75 and 100 x 100 mm *VESA Bracket to be purchased seperately.
Support OS
Win11 64 bit Win10 64 bit
Environment
System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
