Dimension
113 mm x 116.52 mm x 56.22 mm
Motherboard Size
154 mm x 109 mm
CPU
Intel® Processor N150 4C, up to 3.6 GHz, 6W
Memory
1 x SO-DIMM DDR5 slot, support up to 4800MHz Max. 16GB
LAN
GbE LAN (Realtek® RTL8111H)
Wifi Card
AW-CB515NF Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0
Graphics
Intel® Graphics 24EUs 1 x HDMI v2.0, 4096x2160@60Hz 1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz 1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
Audio
Realtek® ALC897
Storage
1 x 2.5" slot for SATA HDD/SSD
Expansion Slots
1 x M.2 M Key 2280 slot (PCIe Gen 3x2) 1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

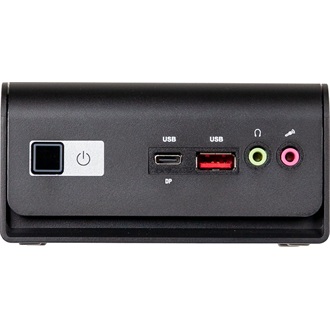

Front I/O
1 x Power button 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB) 1 x Headphone 1 x Microphone

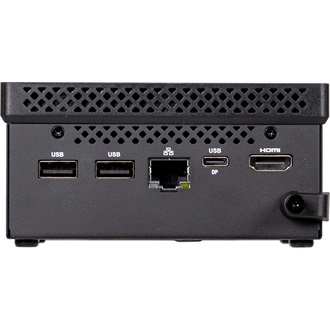

Rear I/O
1 x HDMI 1 x RJ45 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB) 1 x Wire Clamp Screw Hole
Left I/O
1 x DC-In
Right I/O
1 x Kensington lock slot
Power Supply
Input: AC 100-240V Output: DC 19V / 3.42A, 65W
VESA
VESA support Supports 75 x 75 and 100 x 100 mm
Support OS
Windows 11 64bits
Environment
System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
