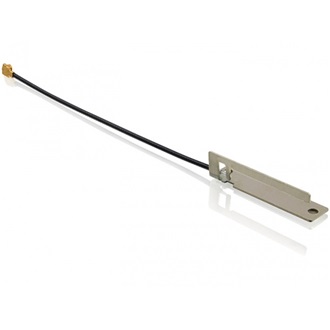

Delock 802.11 b/g/n 803 PIFA antenna

Description
This WLAN/Bluetooth antenna can be connected to your device with MHF/U.FL interface, in order to receive and send signals.

Specification
• WLAN/Bluetooth antenna internal
• Connection: Miniature RF Coaxial connector MHF (I-PEX), U.FL (Hirose)
• Impedance: 50 Ohm
• Cable length: 8.5 cm ( 1.13 mm)
• Frequency range: 2.4 - 2.5 Ghz
• Maximum gain: < 3 dBi
• Average gain: > -5 dBi
• Operating temperature: -10 °C ~ +55 °C
• VSWR (voltage standing wave ratio) 2.0 : 1 max.
• Dimension: 25 x 6 x 6.3 mm

System requirements
• An internal MHF/U.FL interface

Package content
• WLAN/Bluetooth antenna internal

Package
• Poly bag
