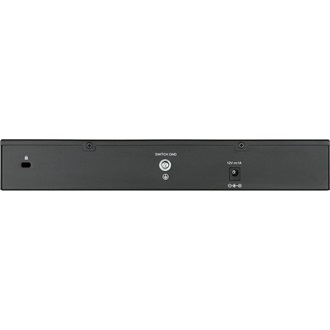

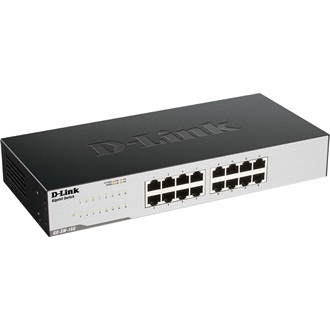

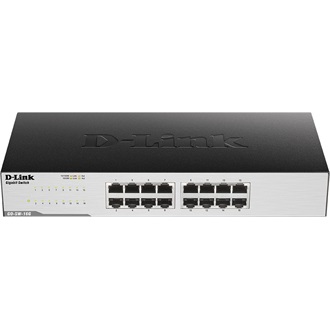

D-Link GO-SW-16G switch

Features



Physical

• 16 or 24 Gigabit Ethernet ports for fast network speeds
• Industry-first plastic case for better heat dissipation and a compact size
• Fanless design for silent operation



Performance

• IEEE 802.3x Flow Control
• Auto MDI/MDI-X crossover for all ports
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 Bytes Jumbo Frames



Energy Efficiency

• Innovative D-Link Green Ethernet Technology conserves energy
• Link status detection reduces power usage
• Cable length detection uses energy more efficiently
• 802.3az EEE hardware implementation reduces power consumption significantly
• RoHS compliant



Easy Installation

• Plug-and-play installation saves you time





Technical Specifications



General



Number of Ports

• GO-SW-16G - Sixteen 10/100/1000 Gigabit ports
• GO-SW-24G - Twenty-four 10/100/1000 Gigabit ports



Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control



Data Tranfer Rates

• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
• Gigabit Ethernet:
  • 2000 Mbps (full duplex)

Network Cables

• 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)
• 100BASE-TX, 1000BASE-T:
  • UTP CAT 5/5e (100 m max)
  • EIA/TIA-568 100-ohm STP (100 m max)



Functionality



D-Link Green Features

• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance



LAN Features

• Back pressure at half-duplex operation
• Auto MDI/MDIX
• Wire speed reception and transmission
• Store-and-Forward switching method
• 8K MAC addresses
• 2 Mbits RAM for data buffering
• Jumbo Frames: 9216 Bytes
• Switching Capacity
  • GO-SW-16G - 32 Gbps
  • GO-SW-24G - 48 Gbps



Port Packet Filtering

• 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps



Physical



LEDs

• Power LED
• GO-SW-16G - 16 Link/Activity/Speed LEDs (one per port)
• GO-SW-24G - 24 Link/Activity/Speed LEDs (one per port)



Power Inputs

• GO-SW-16G - Switching 12V/1A level V power adapter
• GO-SW-24G - Switching 12V/1.5A level V power adapter



Power Consumption

• Power on (standby):
  • GO-SW-16G - AC input: 2.64 Watts
  • GO-SW-24G - AC input: 4.94 Watts
• Power max.:
  • GO-SW-16G - AC input: 9.00 Watts
  • GO-SW-24G - AC input: 15.7 Watts



Heat Dissipation

• Power on (Standby):
  • GO-SW-16G - AC input: 9.01 BTU/h
  • GO-SW-24G - AC input: 16.86 BTU/h
• Power max.:
  • GO-SW-16G - AC input: 30.717 BTU/h
  • GO-SW-24G - AC input: 53.58 BTU/h



MTBF

• GO-SW-16G - 319,267 hours
• GO-SW-24G – 336,072 hours



Dimensions

• GO-SW-16G - 231 x 158 x 46 mm (9.1 x 6.2 x 1.8 inches)
• GO-SW-24G - 257 x 178 x 46 mm (10.1 x 7.0 x 1.8 inches)



Weight

• GO-SW-16G - 0.58 kg (1.28 pounds)
• GO-SW-24G0.76 kg (1.68 pounds)



Operating Temperature

• 0 to 40 °C (32 to 104 °F)



Storage Temperature

• -10 to 70 °C (14 to 158 °F)



Humidity

• 5% to 90% non-condensing



Certifications

• FCC Class A
• ICES-003 Class A
• CE Class A
• C-Tick Class A
• CB
• cUL
