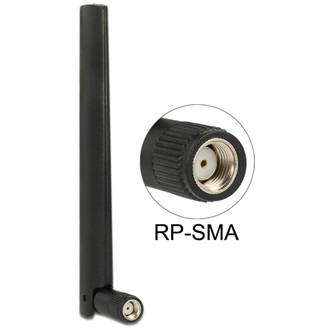

Delock ZigBee antenna

This Zigbee multi antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.

Specification
• Connector: RP-SMA
• ZigBee 868 MHz, 902 ~ 928 MHz, 2405 ~ 2480 MHz
• LTE Band 1/2/3/4/7/9/10/13/14/17/20/25
• GSM/UMTS
• Bluetooth
• WLAN 2.4 GHz
• 699 - 960 MHz, 1710 - 2170 MHz, 2300 - 2700 Mhz
• Gain: 1 ~ 4.3 dBi
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSRW: 3.5 : 1 max.
• Operation temperature range: -20°C ~ 65°C
• Weight: 20.5 g
• Dimension: (L) 135.6 mm
• Ø: 20.1 mm
• Ø RP-SMA plug: 10.1 mm

System requirements
• Device with RP-SMA interface

Package content
• ZigBee multi antenna

Package
• Poly bag
