StarTech PCI-E x1 10/100/1000Mbps hálózati kártya low profile + 3 port USB 3.0

Name: StarTech PCI-E x1 10/100/1000Mbps hálózati kártya low profile + 3 port USB 3.0
Brand: StarTech
SKU: NET000552
Price: 30400 HUF
Availability: OutOfStock

RJ45: 1db, USB-A 3.2 Gen1×1: 3db

Gyártói cikkszám:

PEXUSB3S3GE

Termék ára:

30 400 Ft (bruttó)

darab

Garancia:

24 hónap telephelyünkön Garanciális útmutató»

StarTech PCI-E x1 10/100/1000Mbps hálózati kártya low profile + 3 port USB 3.0

HASONLÓ TERMÉKEK

TARTOZÉKOK-KIEGÉSZÍTŐK

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

fő tulajdonság

hálózati adapter
Hálózat
- átviteli sebesség

  1Gb/s
Fizikai jellemzők
- low profile

  igen
Csatlakozók
- csatlakozás

  PCIe x1
- RJ45

  1db
- USB-A 3.2 Gen1×1

  3db

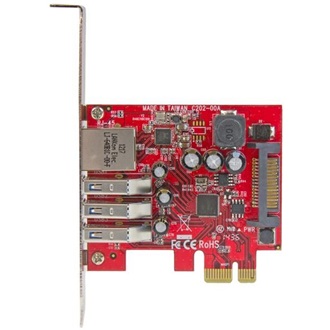

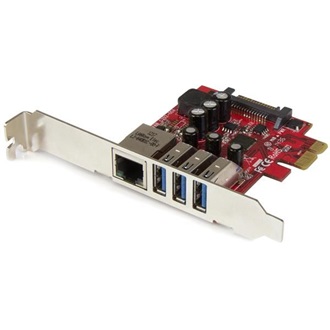

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.

By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.

Combo-card convenience and cost-savings

If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.

This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.

Flexible install options and legacy device support

You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.

The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.

Gigabit connectivity and network management

Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.

Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Renesas / NEC - µPD720201 (USB 3.0) Realtek - RTL8153 (LAN)
Industry Standards	USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0
	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
	IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface	USB 3.0
	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	3
Auto MDIX	Yes
Auto-Negotiation	Yes
Compatible Networks	10/100/1000 Mbps
Flow Control	Full duplex flow control
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
MTBF	1,920,042 Hours
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male

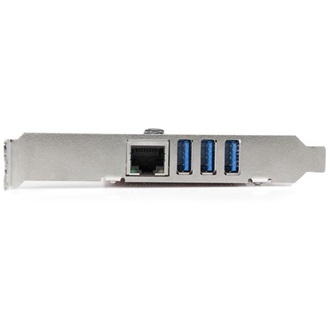

External Ports	3 - USB 3.0 A (9 pin; SuperSpeed) Female
	1 - RJ-45 Female
Internal Ports	1 - SATA Power (15 pin) Plug
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2 Linux 2.6.31 and later (tested up to 3.5)
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
	UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
	SATA power connector (recommended, but optional)
Indicators
LED Indicators	1 - Link (Green)
	1 - Activity (Amber)
Environmental
Humidity	20~80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Product Height	4.7 in [120 mm]
Product Length	3 in [77 mm]
Product Weight	2.1 oz [60 g]
Product Width	0.7 in [18 mm]
Packaging Information
Shipping (Package) Weight	5.3 oz [150 g]
What's in the Box
Included in Package	1 - 3 Port PCI Express USB 3.0 Card w/ Gigabit Ethernet
	1 - Low-Profile Bracket
	1 - Driver CD
	1 - Instruction Manual
