StarTech PCI-E x4 10/100/1000Mbps hálózati kártya PSE / PoE

Name: StarTech PCI-E x4 10/100/1000Mbps hálózati kártya PSE / PoE
Brand: StarTech
SKU: XXX001305
Price: 189500 HUF
Availability: OutOfStock

RJ45: 4db, PoE, PCIe x4: 1db

Gyártói cikkszám:

ST4000PEXPSE

Termék ára:

189 500 Ft (bruttó)

darab

Garancia:

24 hónap telephelyünkön Garanciális útmutató»

ADATOK
CSOMAGOK
LEÍRÁS
LINKEK
HÍREK
VIDEÓ

fő tulajdonság

hálózati adapter
Hálózat
- átviteli sebesség

  1Gb/s
- PoE

  igen
Csatlakozók
- csatlakozás

  PCIe x4
- RJ45

  4db
- PCIe x4

  1db

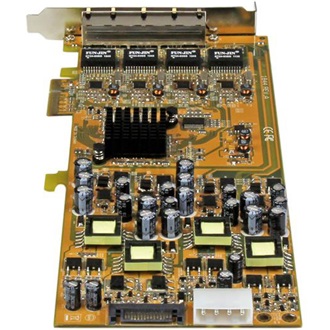

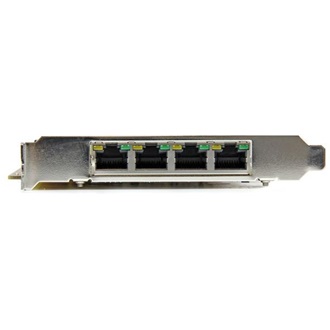

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging

Performance
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Realtek - RTL8111E
Industry Standards	IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	4
Auto MDIX	Yes
Buffer Size	48 KB
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	2000 Mbps (Full-duplex)
Connector(s)
Connector Type(s)	1 - PCI Express x4 Male
External Ports	4 - RJ-45 Female
Internal Ports	1 - LP4 (4 pin; Molex Large Drive Power) Male
	1 - SATA Power (15 pin) Plug
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64) Windows Server® 2012, 2008 R2, 2003(32/64) Linux 2.4.x and later
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940
System and Cable Requirements	Available full height (standard profile) PCI Express expansion slot
	Available LP4 Molex or SATA power connector
Indicators
LED Indicators	4 - Link/ Activity (green)
	4 - PoE Active (yellow)
Power
Output Voltage	48 DC
Environmental
Humidity	10~90% RH (Non-condensing)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 75°C (-40°F to 158°F)
Physical Characteristics
Product Height	4.7 in [120 mm]
Product Length	9.6 in [243 mm]
Product Weight	3.6 oz [102 g]
Product Width	0.7 in [18 mm]
Packaging Information
Shipping (Package) Weight	15.1 oz [428 g]
What's in the Box
Included in Package	1 - PCI Express Network Card
	1 - Driver CD
	1 - Instruction Manual
