FSP Champ 1000VA tower szünetmentes tápegység

SOS UPS forródrót : Telefon : +36 1 236-3060 Fax : +36 1 349-6721 Email : sosups@sosups.hu Képzett mérnökök segítenek az FSP UPS üzemeltetésével kapcsolatos problémák megoldásában. A garanciális ügyintézés továbbra is nálunk történik.

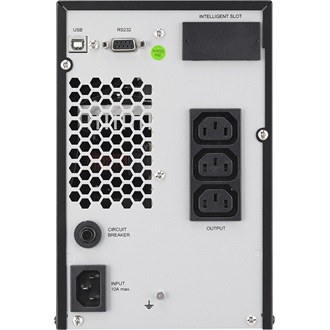

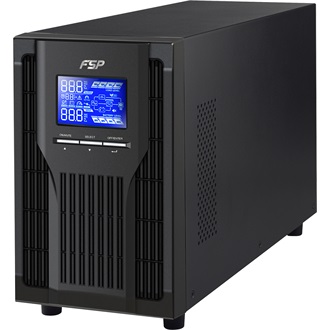

FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Features:

• True double-conversion
• Microprocessor control optimizes reliability
• Input power factor correction
• Output power factor 0.9
• Wide input voltage (120 V – 300 V)
• Converter mode available
• ECO mode for energy saving
• Generator compatible
• Charger capacity expansion to 6A for long-run models
• Smart SNMP works well with either USB or RS-232 together
• Comprehensive display allows easy monitoring and access of UPS status





Specifications:

Model	Champ TW 1K(L)	Champ TW 2K(L)	Champ TW 3K(L)
Capacity	1000 VA / 900W	2000 VA / 1800W	3000 VA / 2700W
Input Voltage Range	120-300 VAC ±5%
Input Frequency	40Hz ~ 70Hz
Power Factor	≥ 0.99 @ Nominal Voltage (100% load)
Output Voltage	± 1% (Batt. Mode)
Output Frequency Range	47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range) 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode)
Current Crest Ratio	3:1
Harmonic Distortion	≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load)
Output Transfer Time (Typical)	Zero (AC to DC) 4ms (Inverter to Bypass)
Output Waveform (Batt. Mode)	Pure Sinewave
Battery Type & Number	12V / 9Ah x 2	12V / 9Ah x 4	12V / 9Ah x 6
Backup Time (One PC load@120W)	N/A
Typical Recharge Time (up to 90% capacity)	4 hours
Indicators / AC Mode
Indicators / Battery Mode
Indicators / Battery level
Indicators / Load level
Indicators / Bypass mode
Indicators / Fault
Alarm / Battery Mode	Sounding every 4 seconds
Alarm / Low Battery	Sounding every second (Batt. Mode)
Alarm / Overload	Sounding twice per second
Alarm / Fault	Continuously sounding
Physical Dimension (mm)	282 x 145 x 220	397 x 145 x 220	421 x 190 x 318
Physical Net Weight (kg) Standard Model	9.8	17	27.6
Physical Net Weight (kg) Long-run Model	4.1	6.8	7.4
Operating Environment / Humidity	20-90 % RH @ 0- 40°C (non-condensing)
Operating Environment / Noise Level	Less than 50dB @ 1 Meter
Management / Optional USB / RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP	Power management from SNMP manager and web browser
