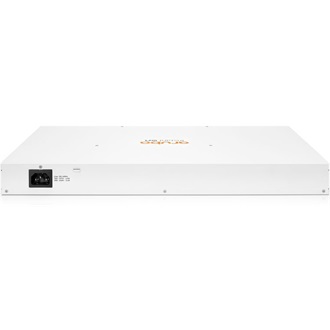

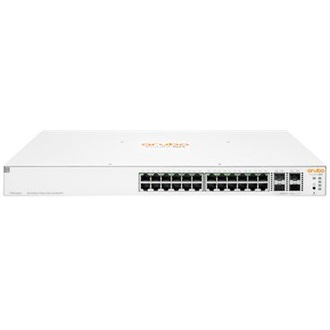

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A)
I/O Ports and Slots
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports
Physical Characteristics
Dimensions
17.42(w) x 10.42(d) x 1.73(h) in
(44.25 x 26.47 x 4.39 cm)
(1U height)
Weight
8.10 lb (3.67kg)
CPU
ARM Cortex-A9 @ 800 MHz
Memory And Flash
512 MB SDRAM
256 MB flash
Packet Buffer
1.5 MB
Performance
100 Mb latency
< 4.7 uSec
Packet size
64B
1000 Mb latency
<2.4 uSec
10000 Mb latency
<1.3 uSec
Throughput (Mpps)
95.23 Mpps
Switching capacity
128 Gbps
Routing table size (# of static entries)
32
MAC address table size (# of entries)
16,000
Reliability MTBF (years)
71
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C)
Non-operating temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating relative humidity
15% to 95% @ 140°F (60°C)
Altitude
Up to 10,000ft (3.048 Km)
Acoustic
Pressure: 32.2 dBA
Power: 58.5 dB
Electrical Characteristics
Frequency
50-60 Hz
AC voltage
100 - 127 / 200 - 240 VAC
Current
4.8/2.4 A
Maximum power rating
439.0 W
Idle power
20.9 W
PoE power
370 W Class 4 PoE
Power supply
Internal power supply
Safety
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 / EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
IEC 61000-3-2, EN 61000-3-2
Flicker
IEC 61000-3-3, EN 61000-3-3
Device Management
Aruba Instant On solution; Web browser; SNMP Manager
Aruba Instant On 1930 48G 4SFP/SFP+ Switch (JL685A)
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
17.42(w) x 11.12(d) x 1.73(h) in
(44.25 x 28.24 x 4.39 cm)
6.91 lb (3.13 kg)
< 4.5 uSec
<2.2 uSec
<1.2 uSec
130.95 Mpps
176 Gbps
114
Power: 0 dB (no fan)
.8/.5 A
36.9 W
16.8 W
n/a
