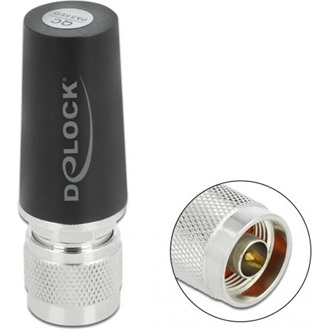

Delock Antenne LTE N-Stecker 3 dBi omnidirektional starr schwarz screw mount outdoor

Garancia: 3 Év Leírás
This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.


Műszaki adatok
? Connector: 1 x N plug
? GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 / 915 MHz
? Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
? Antenna gain: 3 dBi
? Impedance: 50 Ohm
? VSWR: 2.0
? Polarisation: vertical
? Mounting type: screw mounting
? Mounting hole diameter: 13.5 mm
? Operating temperature: -40 °C ~ 70 °C
? Housing material: ABS
? Protection class: IP67
? Colour: black
? Dimensions (LxWxH): ca. 64 x 22 x 22 mm


Rendszerkövetelmények
? Device with a free N jack


A csomag tartalma
? LTE antenna


Csomag
? Zárható műanyag tasak
