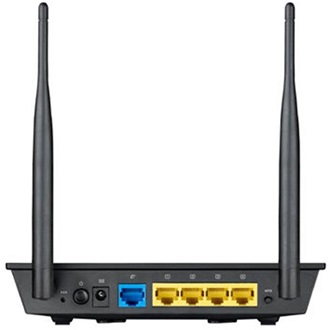

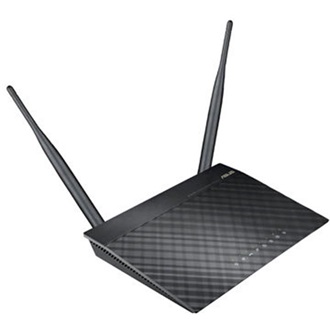

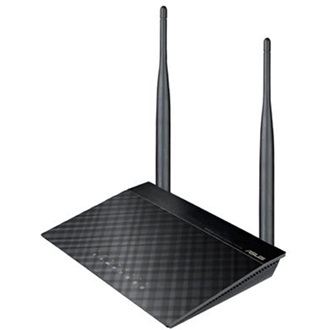

Asus RT-N12E N300 Wi-Fi router

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IPv4
IPv6

N300 complete networking : 300 Mbps

802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps

Fixed antenna x 2

MIMO technology
2.4 GHz 2 x 2

8 MB Flash, 32 MB RAM

2.4G Hz

RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4

WPS Button, Reset Button

Power x 1
Wi-Fi x 1
WAN x 1
LAN x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current

RT-N12E C1 Router x 1
Warranty Card x 1
Power Supply x 1
*Package content varies according to local requirements of each country

168.9 g

AiMesh:No
Primary AiMesh router:No
AiMesh node:No

ASUS Router APP:Yes

Game Boost/acceleration:No
WTFast:No

Support Alexa skill:No

Support IFTTT:No

AiProtection:No
Router Security Assessment:No
Malicious site blocking:No
Two-Way IPS:No
Infected Device Prevention and Blocking;No

Parental Control:Yes
Parental Control Customized Internet schedule:Yes

Adaptive QoS:No
Bandwidth Monitor:No
Bandwidth limiter:Yes
Maximum Bandwidth limiter rule:32
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:No
Traffic analysis period:Daily, Weekly, Monthly
Website history:No

IPv6:Yes
MU-MIMO:No
Wi-Fi Encryption:Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:2.4GHz x3, 5GHz x3
Guest Network Encryption:Open system, WPA/WPA2-Personal
WPS:Yes
Wi-Fi MAC address filter:Yes
Maximum MAC filters:64
Wireless scheduler:Yes
Airtime fairness:No
RADIUS Server:Yes
Universal beamforming:No
Explicit beamforming:No

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN:No
WAN Aggregation:No
3G/4G LTE dongle:No
Android tethering:No
Port forwarding:Yes
Maximum port forwarding rule:64
Port triggering:Yes
Maximum port triggering rule:32
DMZ:Yes
DDNS:Yes
NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
LAN Link Aggregation:No
Manually assign IP address:Yes

VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:No
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:No

File System:No
3G/4G LTE dongle:No
HDD hibernation:No
Safely Remove disk:No
AiCloud:No
Download master:No
AiDisk:No
Media Server:No
Time Machine:No
Samba Server:No
FTP Server:No
Shared Folder privileges:No

Operating mode:Accesspoint, Router
Operating system:ASUSWRT
Free OS upgrade:Yes
Firewall:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
