Compatibility
Intel LGA1851/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
230W

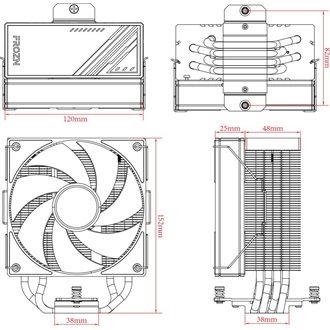

Overall Dimension
120×75×152mm (L×W×H)
Heatsink Material
4 Copper Heatpipe + Aluminum Base + Aluminum Heatsink
Weight
730g (heatsink+fan)
Fan Dimension
120×120×27mm (2pcs)
Fan Speed
500±200 ~ 2000±10% RPM
Max. Air Flow
78CFM
Max. Static Pressure
2.68mmH2O
Noise
29.9dB(A) Max.
Rated Voltage
12VDC (4pin PWM)/5V 3Pin ARGB
Operating Voltage
10.8 ~ 13.2VDC
Started Voltage
7VDC
Rated Current
0.25A
Power Input
3W
Bearing Type
FDB
Connector
4Pin PWM/5V 3Pin ARGB
