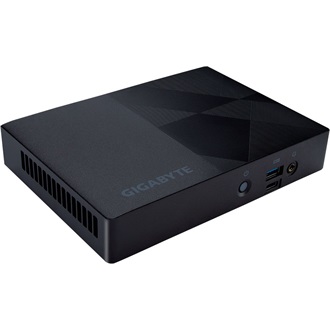

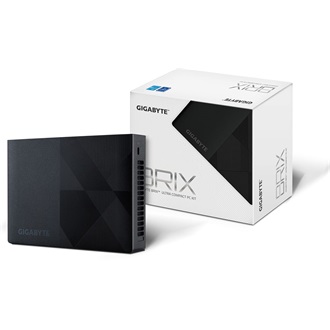

Gigabyte BRIX UCFF Ultra Compact barebone desktop számítógép

Dimension

163.5 x 116.8 x 28.5 mm
0.54 L

Motherboard Size

154 x 110 mm

CPU

Intel^® Core^TM i3 Processor N305
CPU 3.0G~3.8G Turbo, 8C/8T Core, 6MB L3 Cache

Memory

1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB

LAN

2.5 GbE LAN (Realtek RTL8125)

Wifi Card

Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics

Intel^® UHD Graphics 1250

Audio

Realtek ALC897

HDMI Resolution (Max.)

HDMI 2.1
Support 4K@60P HDR10

Mini DP Resolution (Max.)

DP 1.4
support 4K@60P HBR2

Storage

1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots

1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi + Bluetooth card)

Front I/O

1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

Rear I/O

2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot

Power Supply

Input: AC 100-240V
Output: DC 19V/4.74A, 90W

VESA

VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS

Win11 64 bit

Environment

System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
