Printer Type
Laser
Print Method
Electrophotographic Laser Printer
Memory Capacity
Standard
(DCP-L2600D/DCP-L2620DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW)
128 MB
(DCP-L2622DW/DCP-L2640DN/DCP-L2660DW/DCP-L2665DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
256 MB
Liquid Crystal Display (LCD)
(DCP-L2600D/DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/DCP-L2640DN/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW)
16 characters x 2 lines
(DCP-L2660DW/DCP-L2665DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW)
2.7 in. (67.5 mm) TFT Colour touchscreen LCD *1
(MFC-L2922DW)
3.5 in. (87.6 mm) TFT Colour touchscreen LCD *1
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption
(Average)
Peak
Approximately 920 W
Printing *2
Approximately 470 W at 25°C
Printing
(Quiet Mode) *2
Approximately 270 W at 25°C
Copying *2
(DCP-L2620DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW)
Approximately 480 W at 25°C
(DCP-L2600D/DCP-L2622DW/DCP-L2640DN/DCP-L2660DW/DCP-L2665DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
Approximately 490 W at 25°C
Copying
Approximately 280 W at 25°C
Ready *2
Approximately 43 W at 25°C
Sleep *2
Approximately 4.1 W
Deep Sleep *2
(DCP-L2600D)
Approximately 0.5 W
(DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/DCP-L2640DN/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW)
Approximately 0.6 W
(DCP-L2660DW/DCP-L2665DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
Approximately 0.7 W
Power Off *2 *3 *4
Approximately 0.08 W
Dimensions
(Typical outline view)
(DCP-L2600D/DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE)
(DCP-L2640DN/DCP-L2660DW/DCP-L2665DW/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW)
Unit: mm
* : 410
** : 272
*** : 399
** : 319
*** : 421
Weight (with supplies)
(DCP-L2600D/DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWE)
10.1 kg
(DCP-L2627DWXL)
11.2 kg
(DCP-L2640DN/DCP-L2660DW/DCP-L2665DW)
11.4 kg
(MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW)
11.6 kg
11.8 kg
(MFC-L2827DWXL)
12.7 kg
Noise Level
Sound Pressure *5
LpAm = 49 dB (A)
(Quiet Mode)
LpAm = 44 dB (A)
Ready
LpAm = 30 dB(A)
Sound Power
Printing *5
LWAc = 6.63 B (A)
LWAc = 6.12 B (A)
LWAc = Inaudible
Temperature
Operating
From 10°C to 32.5°C
Storage
From 0°C to 40°C
Humidity
20% to 80% (without condensation)
35% to 85% (without condensation)
Automatic Document Feeder (ADF)
(DCP-L2640DN/DCP-L2660DW/DCP-L2665DW/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
Up to 50 sheets
For best results we recommend:
Temperature: 20°C to 30°C
Humidity: 50% to 70%
Paper: 80 g/m2
*1
Measured diagonally.
*2
USB connections to a computer.
*3
Measured according to IEC 62301 Edition 2.0.
*4
Power consumption varies slightly depending on the usage environment.
*5
Measured in accordance with the method described in ISO 7779.
Document Size
ADF Width *1
105 mm to 215.9 mm
ADF Length *1
147.3 mm to 355.6 mm

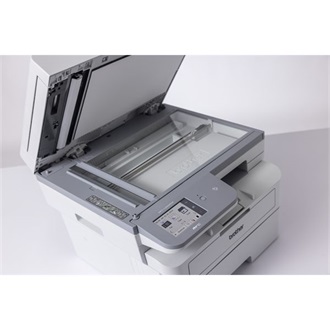

Scanner Glass Width
Maximum 215.9 mm
Scanner Glass Length
Maximum 300 mm
ADF models only
Paper Input
Paper Tray
(Standard)
Paper Type
Plain Paper, Thin Paper, Recycled Paper, Thick Paper
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm), A4 Short (270mm Paper)
Paper Weight
60 to 163 g/m2 *1
Maximum Paper Capacity
Up to 250 sheets of 80 g/m2 Plain Paper
Manual Feed Slot
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Width:
76.2 to 215.9 mm
Length:
127 to 355.6 mm
Envelope:
COM-10, DL, C5, Monarch
60 to 230 g/m2
One sheet at a time
Paper Output *2
Face Down Output Tray
Up to 120 Sheets (face down delivery to the face down output paper tray) *3
Face Up Output Tray
One sheet (face up delivery to the face up output tray)
2-sided
Automatic 2-sided Printing
Plain Paper, Thin Paper, Recycled Paper
A4
60 to 105 g/m2
For paper of 105 g/m2 and above, open the back cover to use the face up output tray.
For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.
Calculated with 80 g/m2 in a temperate, non humid environment. Actual output tray capacity may vary depending on environmental conditions.
This feature is available for MFC models.
Compatibility
ITU-T Super Group 3
Coding System
MH / MR / MMR / JBIG
Modem Speed
33,600 bps (with Automatic Fallback)
2-sided Print Receiving
(MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
Yes
Automatic 2-sided Sending
Yes (from the ADF)
Scanning Width
Maximum 208 mm
Printing Width
Maximum 207.4 mm
Greyscale
8 bit / 256 levels
Resolution
Horizontal
203 dpi
Vertical
Standard: 98 dpi
Fine: 196 dpi
Super fine: 392 dpi
Photo: 196 dpi
Address Book
200 Locations
Shortcut
(MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW)
10 locations
Groups
Up to 20
Broadcasting
260 Locations
(MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
250 Locations
Automatic Redial
3 times at 5-minute intervals
Memory Transmission
Up to 400 pages *1
Up to 500 pages *1
Out of Paper Reception
‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).
Copy Width
Maximum 210 mm
Automatic 2-sided Copy
Sort Copy
Stack Copy
Up to 99 pages
Maximum 600 x 600 dpi
First Copy Out Time *1
Less than 10 seconds at 23°C
From Ready Mode and standard tray.
Colour / Black
Yes / Yes
TWAIN Compliant
WIA Compliant
AirPrint Compliant
(DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/DCP-L2640DN/DCP-L2660DW/DCP-L2665DW/MFC-L2802DN/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
(macOS v11, v12, v13)
Colour Depth
30 bit colour Processing (Input)
24 bit colour Processing (Output)
Grey Scale
10 bit colour Processing (Input)
8 bit colour Processing (Output)
Resolution *2
Up to 19200 x 19200 dpi (interpolated)
Up to 1200 x 1200 dpi (from Scanner Glass)
Up to 600 x 600 dpi (from the ADF) *1
Automatic 2-sided Scanning
Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)
Automatic 2-sided Print
Emulation
PCL6, BR-Script3, PDF Version 1.7
Up to 1200 x 1200 dpi
Print Speed *1 *2
1-sided Print *3
Up to 32 pages/minute (A4 size)
Up to 34 pages/minute (Letter size)
Up to 34 pages/minute (A4 size)
Up to 36 pages/minute (Letter size)
2-sided Print
Up to 16 pages/minute (Up to 8 sheets/minute) (A4 size)
Up to 17 pages/minute (Up to 8.5 sheets/minute) (Letter size)
First Print Time *4
Less than 8.5 seconds at 23°C
The print speed may change depending on the type of document you print.
The print speed may be slower when the machine is connected by wireless LAN.
These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.
From Ready mode and standard tray.
USB *1 *2
Hi-Speed USB 2.0
Use a USB 2.0 interface cable that is no more than 2 metres long.
LAN
10Base-T/100Base-TX *3
Wireless LAN
(DCP-L2620DW/DCP-L2622DW/DCP-L2627DW/DCP-L2627DWXL/DCP-L2627DWE/DCP-L2660DW/DCP-L2665DW/MFC-L2800DW/MFC-L2802DW/MFC-L2827DWXL/MFC-L2827DW/MFC-L2835DW/MFC-L2860DWE/MFC-L2860DW/MFC-L2862DW/MFC-L2922DW)
IEEE 802.11a/b/g/n (Infrastructure Mode)
IEEE 802.11a/g/n (Wi-Fi Direct®)
NFC
Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.
Third party USB hub devices are not supported.
Use a straight-through Category 5 (or greater) twisted-pair cable.
Supported protocols and security features may differ depending the models.
10Base-T/100Base-TX
IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
IEEE 802.11a/n (Infrastructure Mode), IEEE 802.11a/n (Wi-Fi Direct)
ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server,CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP
NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP
APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3, IMAP4,FTP)*, SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos
*When Internet FAX is downloaded.
APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3, IMAP4,FTP)*, SNMP v3, 802.1x ( EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)
Wi-Fi Certification Mark License (WPA3™ - Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct
Supported Operating Systems And Software Functions
For the latest supported OS, go to your model's Supported OS page at support.brother.com/os.
(including Drivers)
Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise *4 *5
PC Fax *3
Scanning
32 bit (x86) or 64 bit (x64) processor
80 MB
1.8 GB
Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise *4 *5
64 bit (x64) processor
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
PC-Fax (Send) *3
64 bit processor
N/A
500 MB
Chrome OS
An Internet connection is required to install the software if the installation disc is not supplied.
Third party USB ports are not supported.
PC-Fax supports black and white only.
For WIA, 1200x1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.
PaperPort™ 14SE supports Windows 10 and Windows 11.
*6
macOS DisclaimerAirPrint capable: Printing, scanning, or PC faxing(Send) via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.
