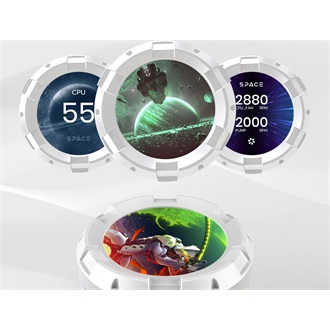

LCD SCREEN

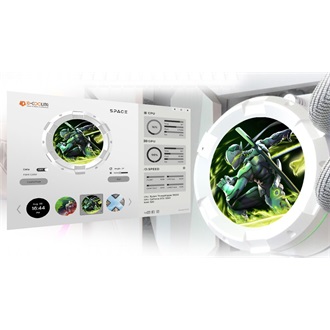

System Requirement
Windows 10, Windows 11
Dimension
2.1 inch
Resolution
480x480
Backlight
600cd/m²
Color
24-bit, 16.7 million
Compatibility
Intel LGA2066/2011/1851/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
300W

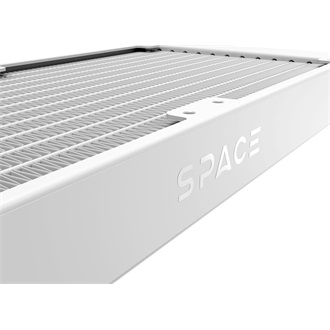

Radiator Dimension
276×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
400mm

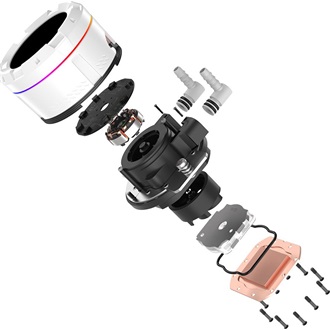

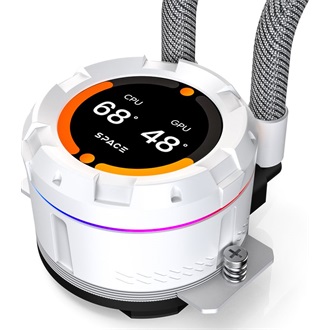

Waterblock Dimension
76x76x58mm
Cold Plate Material
Copper
Pump Current
0.36A Max.
Pump Speed
2500RPM±10%
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
25dB(A)

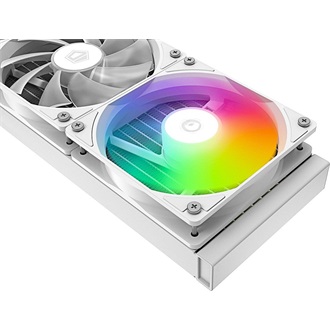

Fan Dimension
120×120×25mm
Included Fans
2pcs
Fan Speed
500~1800±10%RPM
Max. Air Flow
76.16CFM
Max. Static Pressure
2.16mmH2O
Noise
35.2dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Rated Current
0.2A
Power Input
2.4W
Bearing Type
Hydraulic Bearing
Connector
4Pin PWM/5V 3Pin ARGB
