Model

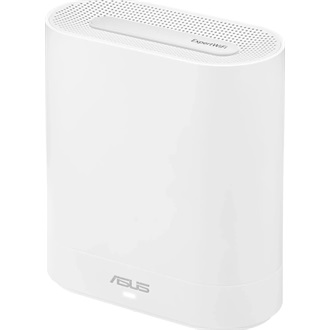

ASUS ExpertWiFi EBM68
Model Name
EBM68
Network Standard
IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6
Product Segment
AX7800 ultimate AX performance : 574+2402+4804Mbps
Data Rate
802.11a : up to 54 Mbps802.11b : up to 11 Mbps802.11g : up to 54 MbpsWiFi 4 (802.11n) : up to 300 MbpsWiFi 5 (802.11ac) (1024QAM): up to 4333MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 6 (802.11ax) (5GHz-1) : up to 2402MbpsWiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps
Antenna
Internal antenna x 6
Transmit / Receive
2.4GHz 2x25GHz-1 2x25GHz-2 4x4
Processor
1.7 GHz quad-core processor
Memory
256 MB Flash1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4 GHz5 GHz-15 GHz-2
Operating Mode
Wireless Router ModeAiMesh Node ModeAccess Point Mode

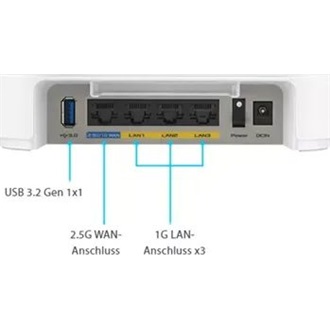

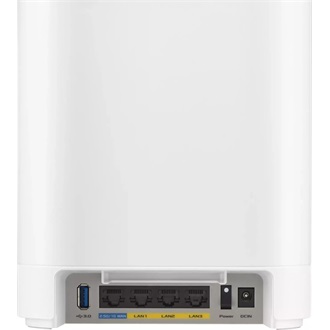

I/O Ports
RJ45 for 2.5G BaseT for WAN x 1RJ45 for Gigabits BaseT for LAN x 3USB 3.2 Gen 1 x 1
Buttons
WPS ButtonReset ButtonPower Switch

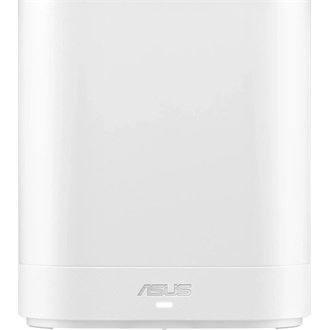

LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 12 V with max. 3 A current

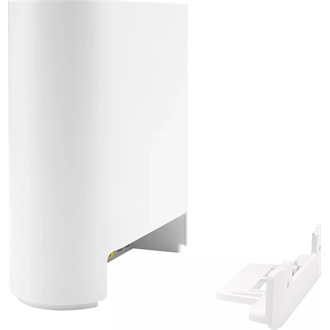

Mounting
Wall Mount
Package Content
ExpertWiFi EBM68RJ-45 cablePower adapterWarranty cardQuick start guideWall-mount kit
Product Weight (g)
808g
Product Dimentions
167x77x186 mm
Remark
Content and color may vary in different regions and packages.
AiMesh
AiMesh• Primary AiMesh Router• AiMesh Node
Device Access Control
"Allow you to block access to unwanted websites and apps."------------------------------------------------------Web & Apps FiltersTime SchedulingRewardSafe BrowsingCustomized Internet Schedule• Maximum Device Access Control Profile :12• Maximum Device Access Control Content Filter Rule :12
Dashboard
Self-Defined Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."------------------------------------------------------------------------Self-Defined Network Type• Employee• Guest Portal• Guest Network• Scheduled Network• IoT Network• VPN Network• Maximum Self-Defined Network Rule :16VLANCaptive Portal for Free WiFiVPN WiFiWiFi Scheduling: One Time AccessWiFi Scheduling: Weekly ScheduleWiFi share: QR code, PDF fileBandwidth LimiterAP isolateDNS Server Connection
Security
AiProtectionVPNWPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseWPSLet's EncryptDNS-over-TLSSSHFirewall• Maximum Firewall Keyword Filter :64• Maximum Firewall Network Service Filter :32• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro• Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking
VPN
VPN Client L2PTVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN FusionSupport Surfshark
Traffic Control
Adaptive QoS• Bandwidth Monitor• Bandwidth LimiterTraffic Monitor• Real-time Traffic Monitor• Wired Traffic Monitor• Wireless Traffic MonitorTraffic Analyzer• Website History
WAN
Internet Connection Type• PPPoE• PPTP• L2TP• Automatic IP• Static IP• IPSecDual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort ForwardingPort TriggeringDMZDDNSNAT Passthrough• PPTP Pass-Through• L2TP Pass-Through• IPSec Pass-Through
LAN
DHCP ServerIGMP SnoopingIPTVLAN Link AggregationVLAN
Wireless
UTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless Scheduler
USB application
4G / 5G Auto Mobile TetheringMedia ServerSamba ServerFTP ServerShared Folder Privileges
User Interface
WEB: ASUSWRTAPP: ASUS ExpertWiFi APP
Management
Multiple Site Management
Administration
Configuration Backup and RestoreDiagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update
