Dimension
112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)
Motherboard Size
105 mm x 114.49 mm
CPU
Intel® Core™ Ultra 5 processor 225H 14C, 4P+8E+2LPE, 28W
Memory
2 x SO-DIMM DDR5 slots, support up to 6400MHz Max. 96GB
LAN
2.5GbE LAN (Intel® I226V)
Graphics
Intel® Arc™ Graphics, Intel® Xe LPG+, up 8 Xe cores 2 x HDMI v2.1, 4096x2160 60Hz, TMDS, CEC 2 x USB type C ALT (DisplayPort v2.1)
Audio
HD Audio (Realtek Audio)
Expansion Slots
1 x M.2 M Key 2280 SSD slot (PCIe Gen5x4) 1 x M.2 M Key 2280 SSD slot (PCIe Gen4x4+SATA) 1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

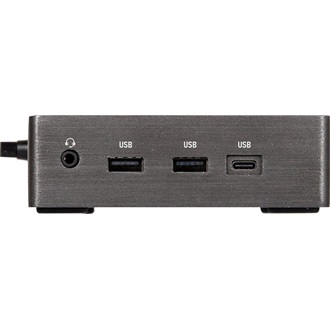

Front I/O
1 x Headset 2 x USB 3.2 Gen2 1 x USB-C 3.2 Gen2 1 x Power button with LED

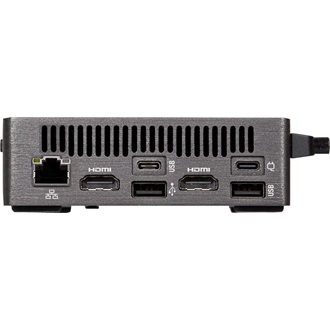

Rear I/O
2 x HDMI 2.1 (TMDS & CEC) 1 x USB-C 3.2 (ALT) 1 x USB-C 3.2 (PD IN) 1 x USB 3.2 Gen2 1 x USB 2.0 1 x RJ45 1 x Kensington Lock Slot
Power Supply
100-240V, 100W USB PD adapter (USB type C)
VESA
VESA support Supports 75 x 75 and 100 x 100 mm
Support OS
Windows 11 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
NPU
Dedicated Low Power AI Engine 13 TOPs
