Product name

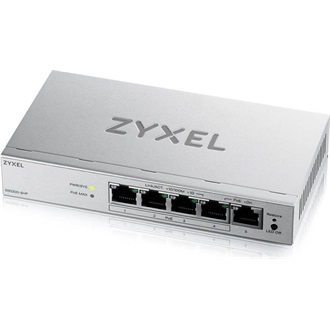

5-Port Web Managed PoE Gigabit Switch
Case
Metal
Auto MDI/MDI-X
Yes
Store and Forward
Full Duplex Capability
Flow Control
10/100/1000 Mbps Ethernet Ports
5
10/100/1000 Mbps Ethernet PoE+ Ports
4
Switching Capacity
10 Gbps
MAC Address
2K
Memory Buffer
128 KB
Jumbo Frames
Up to 9 KB
Web GUI
802.3x Flow Control
802.1Q VLAN
WRR Priority QoS
Port-based QoS
802.1p CoS
Broadcast Storm Control
Loop Detection /Prevention
IGMP Snooping v1/v2/and v3 Compatitble
Link Aggregation
Port Mirroring
Fanless
Power Saving by Detecting Link Status & Cable Length
Input
100 - 240 V AC, 50/60 Hz
Power supply
External
Max. power consumption (watt)
62.79
Min. power Consumption (watt)
0.935
PoE power budget (watt)
60
Item
Dimensions (WxDxH)193 x 84 x 26 mm (7.6" x 3.3" x 1.0" )
Weight392g (0.86 lb.)
Packing
Dimensions (WxDxH)210 x 132 x 78 mm (8.3" x 5.2" x 3.1")
Weight950g (2.10 lb.)
Operating
Temperature0°C to 40°C/32°F to 104°F
Humidity10% to 90% (non-condensing)
Storage
Temperature-40°C to 70°C/-40°F to 158°F
