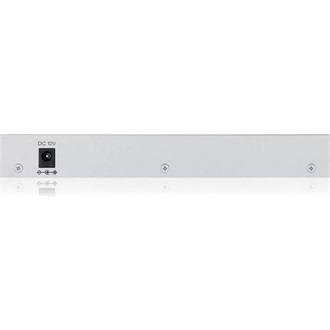

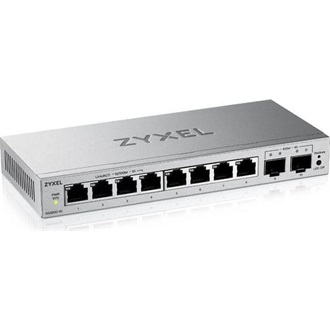

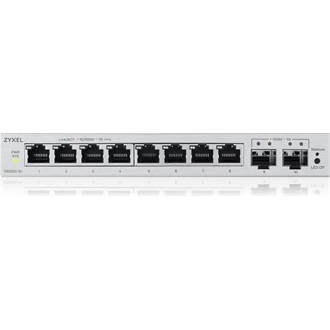

Zyxel GS1200-10 V3 switch

Description

Product name

8-Port Web Managed Gigabit Switch

2-Port SFP

Case

Metal

Key Features

Auto MDI/MDI-X

Yes

Store and Forward

Yes

Full Duplex Capability

Yes

Flow Control

Yes

Hardware

10/100/1000 Mbps Ethernet Ports

8

10/100/1000 Mbps SFP

2

Performance

Switching Capacity

16 Gbps

MAC Address

4K

Memory Buffer

192 KB

Jumbo Frames

Up to 9 KB

System Features

Web GUI

Yes

802.3x Flow Control

Yes

802.1Q VLAN

Yes

WRR Priority QoS

Yes

Port-based QoS

Yes

802.1p CoS

Yes

Broadcast Storm Control

Yes

Loop Detection /Prevention

Yes

IGMP Snooping v1/v2/and v3 Compatitble

Yes

Link Aggregation

Yes

Port Mirroring

Yes

Green Features

Fanless

Yes

Power Saving by Detecting Link Status & Cable Length

Yes

Power

Input

100 - 240 V AC, 50/60 Hz

Power supply

External

Max. power consumption (watt)

4.48

Min. power Consumption (watt)

0.424

Physical Specifications

Item

Dimensions (WxDxH)
155x 85 x 26 mm (6.1” x 3.0” x 1.0”)

Weight
325g (0.72 lb.)

Packing

Dimensions (WxDxH)
161 x 90 x 95 mm (6.3” x 3.5” x3.7”)

Weight
497g (1.10 lb.)

Environmental Specifications

Operating

Temperature
0°C to 40°C/32°F to 104°F

Humidity
10% to 90% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
10% to 90% (non-condensing)
