LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
2.1 inch
Resolution
480x480
Backlight
300cd/m²
Color
18-bit, 262K
Refresh Rate
60 HZ
Compatibility
Intel LGA1954/1851/1700/1200/115X
AMD AM5/AM4
TDP
300W
Radiator Dimension
276×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
400mm

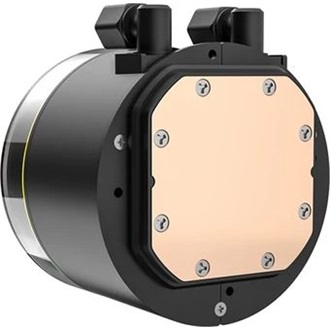

Waterblock Dimension
79x79x68mm
Cold Plate Material
Copper
Pump Current
0.45A Max.
Pump Speed
2900RPM±10%(PWM)
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
25dB(A)
Fan Model
AM-120-ARGB
Fan Dimension
120×120×25mm
Included Fans
2pcs
Fan Speed
0 ~ 2500±10% RPM
Max. Air Flow
79.7CFM
Max. Static Pressure
3.65mmH2O
Noise
31.0dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Rated Current
0.3A
Power Input
3.6W
Bearing Type
Hydraulic Bearing
Connector
7-pin (4-pin PWM + 5V 3-pin ARGB)
