Standard
IEEE802.11 be/ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 688Mbps
5GHz: 4324Mbps
Frequency band
2.4GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40- ,80-, 160- and 240-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz):
25/26dBm
EU (2.4GHz/5GHz):
16/26dBm
Antenna type
2 detachable 2.4/5GHz external antenna
Antenna gain
2dBi, 2x2:2SS
3dBi, 2x2:2SS
Minimum receive sensitivity
Min. Rx sensitivity up to -99 dBm
Band steering
Yes
WDS/Smart Mesh*2
Wireless Bridge
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Load balancing
No
Advanced cellular coexistence
Encryption
WEP
WPA
WPA2
WPA3
Authentication
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
IPv6
VLANs
WMM
U-APSD
Operating mode
Cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
SNMP
Item
Dimensions (WxDxH)(mm/in.) 308 x 136.4 x 49.6 / 12.13 x 5.37 x 1.95
Weight (g/lb.) 575.6 / 1.27
Packing
Dimensions (WxDxH)(mm/in.) 221 x 188 x 59 / 8.70 x 7.40 x 2.32
Weight (g/lb.) 984.5 / 2.17

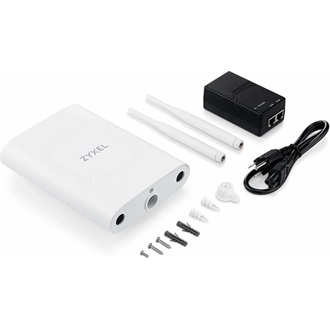

Included accessories
PoE injector
Mounting screws
MTBF (hr)
631,165
Ethernet port
1 x 1/2.5GbE LAN
Power
PoE (802.3at): power draw 24W
PoE modes
IEEE 802.3af: Not supported
IEEE 802.3at: Unrestricted
IEEE 802.3bt: Unrestricted
Weather Protection
IP55
Operating
Temperature -25°C to 65°C / -13°F to 149°F
Humidity 10% to 90% (non-condensing)
Storage
Temperature -40°C to 70°C / -40°F to 158°F
Radio
FCC Part 15C
FCC Part 15E
FCC Part 2.1091
ETSI EN 300 328
EN 301 893
Draft EN 303 687
EN 50385
EN 50665
EN IEC 62311
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55035
EN61000-3-2/-3
EN60601-1-2
BSMI CNS15936
Safety
EN 62368-1
IEC 62368-1
BSMI CNS15598-1
