Model
RT-AX50
Network Standard
IPv6IPv4WiFi 6 (802.11ax)WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
WiFi Data Rate
WiFi 6 (802.11ax) (5GHz) : up to 2402 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 5 (802.11ac) : up to 867 MbpsWiFi 4 (802.11n) : up to 300 Mbps802.11g : up to 54 Mbps802.11b : up to 11 Mbps802.11a : up to 54 Mbps
Antenna
External antenna x 4
Transmit / Receive
5GHz 2x22.4GHz 2x2
Processor
1.3GHz dual-core processor
Memory
128 MB Flash256 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
Operating Mode
Access Point, AiMesh Node, Repeater, Router
I/O Ports

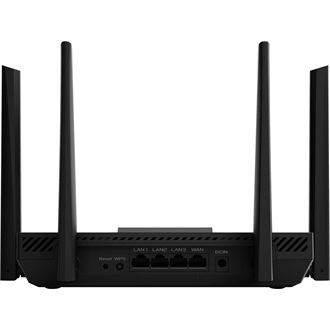

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
Buttons
WPS Button, Reset Button
LED Indicator
Status x 1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 12 V with max. 1 A current
Package Content
.RT-AX50.RJ45 Ethernet Cable.Power Adapter.Quick Start Guide.Warranty Card
Product Weight (g)
353g
Product Dimensions
261 x 156 x 46 mm (WxDxH)
AiMesh
AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Security
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall
VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP
Traffic Control
• Bandwidth Limiter, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port triggering, DMZ, DDNS
LAN
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)
Wireless
UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
Administration
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
