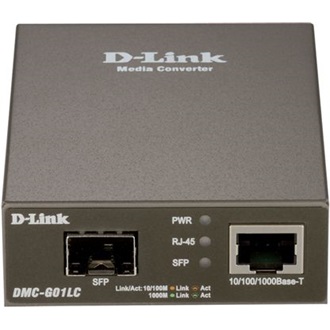

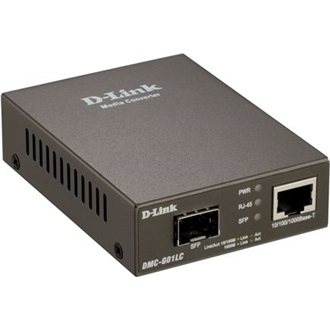

D-Link DMC-G01LC média konverter

Technical Specifications

General

LAN

• 1 x 10/100/1000 Mbps port
• IEEE 802.3u/x/3ab
• Auto-Negotiation for each port
• Full-Duplex operation at 1000 Mbps / Half/Full-Duplex operation at 10/100 Mbps
• Auto MDI/MDIX
• Supports Jumbo frames up to 9216 bytes at 1000 Mbps

Max. Forwarding Rate

• 1,488,000 pps

Forwarding mode

• Cut-Through

Packet Buffer Memory

• 256 Kbits

Switching Capacity

• 2 Gbps

Physical/Environmental

External Power Adapter

• Switching 5V/1A Level V Power Adapter, ErP compliant

Power Consumption (Max.)

• DC 2.34 W / AC 3.46 W

Power Consumption (Standby)

• DC 1.49 W / AC 2.06 W

Heat Dissipation (Max.)

• 11.81 BTU/h

MTBF (hours)

• 506,711

Operation Temperature

• 0 to 50 °C (32 to 130 °F)

Storage Temperature

• -10 to 70 °C (14 to 158 °F)

Operating Humidity

• 10 to 90%

Storage Humidity

• 5 to 90%

Emission (EMI) & Safety Certifications

EMI

• EMI: CE class A, FCC class A, VCCI class A, BSMI class A

Safety

• LVD, UL/cUL

Optional Transceivers

• DEM-211: 100BASE-FX, Multi-mode, 2 km
• DEM-310GT: 1000BASE-LX, Single-mode, 10 km
• DEM-311GT: 1000BASE-SX, Multi-mode, 550 m
• DEM-312GT2: 1000BASE-SX, Multi-mode, 2 km
