External
4.46 × 2.51 × 0.85 in. (without antennas)
4.46 × 3.96 × 7.92 in. (with vertical antennas)
113.2 × 63.8 × 21.7 mm (without antennas)
113.2 × 100.5 × 201.1 mm(with vertical antennas)

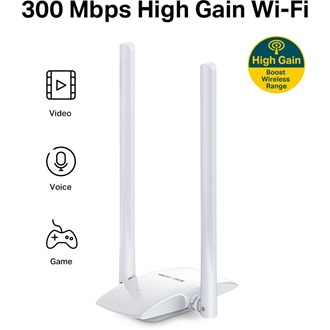

11n: Up to 300 Mbps (Dynamic)
11g: Up to 54 Mbps (Dynamic)
11b: Up to 11 Mbps (Dynamic)
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
2.400 - 2.4835 GHz
300M: -68 dBm@10% PER
270M: -68 dBm@10% PER
144M: -71 dBm@10% PER
130M: -71 dBm@10% PER
54M: -74 dBm@10% PER
11M: -86 dBm@8% PER
6M: -90 dBm@10% PER
1M: -94 dBm@8% PER
Micro USB 2.0
CE, ROHS
300 Mbps High Gain Wireless USB Adapter (MW300UH)
Quick Installation Guide
Resource CD
USB Cable (Micro USB to USB A)
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
≤20 dBm (EIRP)
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Windows 10/8.1/8/7/XP (32/64 bit)
