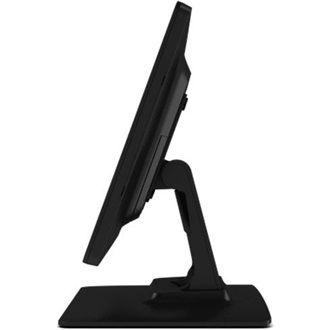

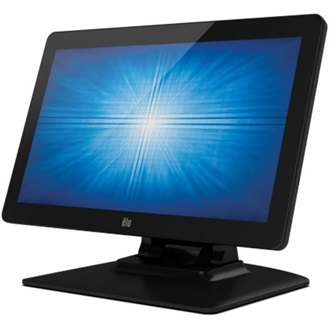

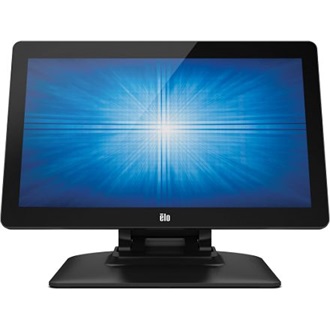

PCAP FHD USB-C With Stand (Worldwide) - E155645 PCAP FHD USB-C Without Stand (Worldwide) - E125496 PCAP HD With Stand (Worldwide) - E318746
Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
1.28" / 32.4 mm panel depth
Aspect Ratio
16:9
Active Area (mm)
13.55" x 7.62" / 344.16 mm x 193.5 mm
Resolution
FHD model: 1920 x 1080 HD model: 1366 x 768
Other Supported Resolutions
FHD model: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 50, 60Hz 1280 x 800 60Hz, 60Hz RB 1280 x 960 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60Hz HD model: 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 50, 60Hz 1360 x 768 60Hz
Viewing Angle
FHD Model: Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total HD Model: Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total
Number of Colors
FHD Model: 16.7M; HD Model: 262K
Brightness (typical)
FHD model LCD Panel: 250 nits PCAP + DC power: 225 nits PCAP + USB-C 5V power: 180 nits HD model LCD Panel: 220 nits PCAP + DC power: 198 nits
Response Time-total (typical)
FHD model: 25 ms HD model: 10 ms
Contrast Ratio
FHD Models: 700:1 / HD Models: 400:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only) Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power
I/O Ports
FHD Model: 1 x USB Type-C 1 x Audio jack (Line-in) 1 x VGA (Micro-HDMI female connecter) 1 x HDMI 1 x 12V D/C input 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals HD Model: 1 x USB Type-B 1 x Audio jack (Line-in) 1 x VGA (Mini-VGA female connecter) 1 x HDMI 1 x 12V D/C input 3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers
2 x 2W internal speakers
Video
FHD Model: Analog VGA HDMI USB Type-C *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues HD Model: Analog VGA HDMI
Input Video Format
Horizontal: 31.5 - 82 KHz Vertical: 50 - 75 Hz
Power
FHD Model: Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A Option 2: External DC Adapter 12V/36W in box Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz HD Model: External DC Adapter 12V/36W in box Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz
Power Consumption (Typical)
FHD Model (monitor + adapter): ON: 12 W SLEEP: 2 W OFF: 0.2 W HD Model (monitor + adapter): ON: 10.2 W SLEEP: 0.4 W OFF: 0.2 W
Monitor Dimensions (without Stand)
9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm
Monitor Dimensions (with Stand)
11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm
Shipping Box Dimensions
With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm
Weight (Unpackaged)
With Stand: 6.72 lbs / 3.05 kg Without Stand: 3.62 lbs / 1.64 kg
Weight (Packaged)
With Stand: 11.05 lbs / 5.01 kg Without Stand: 7.47 lbs / 3.39 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Warranty
3-year
Extended Warranty Options
4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations
Canada cUL, IC Europe CE Japan VCCI United States UL, FCC China CCC Korea, KCC, e-standby Australia RCM Mexico NOM Taiwan BSMI International CB RoHS, China RoHS, WEEE, REACH India BIS Russia EAC
Ingress Protection
IPX1 for front side
Impact Protection
FHD Model: IK07
What's in the Box
FHD Model: Touchmonitor Quick Install Guide HDMI cable Power brick 2x cable clamps 2x tie wraps EEI Label USB Cable (USB Type-A to Type-C) NA Power cable EU Power cable 3x screws (M3x8mm) for cable clamps 2x screws (M3x10mm) for cable doors HD Model: Touchmonitor Quick Install Guide HDMI cable Power brick 2x cable clamps 2x tie wraps User Manual CD Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male) USB cable (USB Type A plug to USB Type B plug) Audio cable 4x screws
