Technical Speci?cation

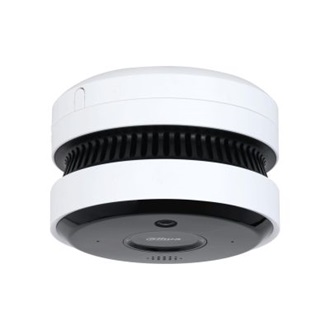

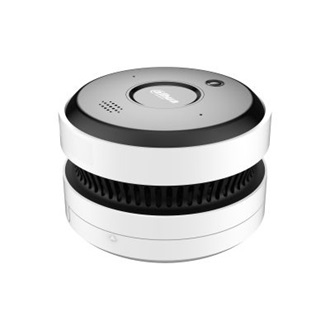

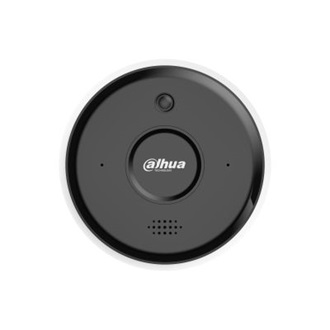

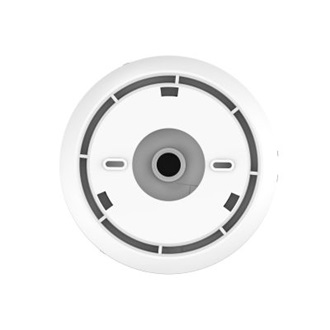

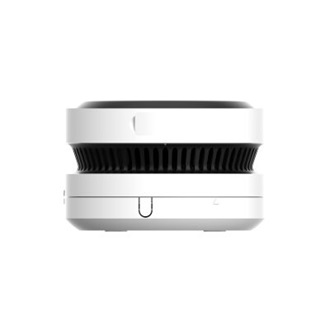

Smoke Detector Model DHI-HY-SAV849HA-E Communication 1 RJ-45 PoE 10M/100M Ethernet ports Indicators Standby: Green indicator flashes once per minute Fault: Red indicator flashes once per minute Alarm: Red indicator flashes once per second Protection Area 30 m 2 –60 m 2 Operating Principle Photoelectric Alarm Method Sound and LED Indicator Power DC12V / PoE and 3V lithium battery Operating Current ≤30uA (Camera excluded) ≤300mA (Camera included) Back-up Battery Life 3–5 years Operating Temperature –10°C to +55°C (+14°F to +131°F) Operating Humidity 0%–95% RH (non-condensing) Alarm Classification Smoke alarm, fault alarm, undervoltage alarm Alarm Sound Pressure ≥80 dB (A) @ 3 m (9.84 ft) Dimensions φ120 mm × H67 mm (4.72" × 2.64" ) Weight 420 g (0.93 lb) Installation Ceiling mount
Network Camera Image Sensor 1/2.7" CMOS Focal Length 2.0 mm Field of View Horizontal: 146.4°; Vertical: 179.6° Max. Resolution 5 MP ROM 256 MB RAM 512 MB Day/Night Auto (ICR) Noise Reduction 3D NR WDR True WDR S/N Ratio >56 dB AGC Auto; manual White Balance Auto; manual BLC Yes HLC Yes Compression H.265; H.264; H.264H; H.264B Video Bit Rate H.264: 32 Kbps–10240 Kbps H.265: 12 Kbps–7168 Kbps Frame Rate 50Hz: Main stream (2688 × 1520@25 fps/2688 × 1520@25 fps/2304 × 1296@25 fps) Sub stream (704 × 576@25 fps/(704 × 576@25 fps/(704 × 576@25 fps) Third stream(704 × 576@25 fps/1920 × 1080@14 fps/1920 × 1080@25 fps) 60Hz: Main stream (2688 × 1520@30 fps/2688 × 1520@30 fps/1280 × 720@30 fps/1920 × 1080@30 fps) Sub stream (704 × 480@30 fps/704 × 480@30 fps/704 × 480@30 fps) Third stream (1920 × 1080@25 fps/704 × 480@30 fps/1920 × 1080@30 fps) L:W 16:9 Max. Frame Rate 2592 × 1944@20 fps Bit Rate Control Variable/Constant Default Frame Rate under Default Resolution 4096 Kbps (2592 × 1944) Language English Alarm Linkage Smoke alarm Special Auto WDR at night Image Setting Brightness; contrast; sharpness; saturation; gamma OSD Channel/time/place/voltage of back-up battery Image rotation, mirroring, flipping Yes Recording Mode Recording manually or linked with alarm Storage FTP; SFTP; Micro SD card (256G); NAS Network Port 1 10M/100M Ethernet port (RJ-45) User 10 channels at most Reset Yes Browser IE7 and newer versions Chrome 8+ Firefox 3.5+ Safari 5+ User Management Support 32 users at most and users are classified as multiple groups Alarm Input Interface 2 channels In: 5mA 5VDC Alarm Output Interface 2 channels Out: 300mA 12VDC Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network access Protocol HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DH CP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP Interoperability ONVIF; MileStone; Genetec; CGI; PISA Power Supply DC12V+PoE Ingress Protection IP30
