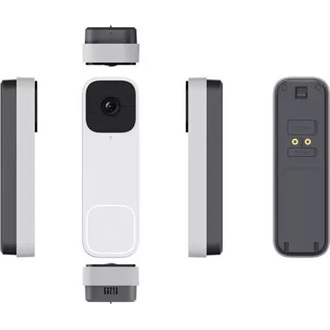

Smart Home Video Kapucsengő
SPECIFICATIONS
Product Dimension
149x47x30 mm
Net Weight
217g
Power Cable Length
1.5m
Housing Material
ABS+PC
Housing Color
White
Housing Flame Retardance
UL94 V-0
Ingress Protection(IP)
IP65
Image Sensor
1/2.8" 3MP CMOS
Sensor Brand And Model
SMARTSENS, SC301IOT
Main Chipset Brand And Model
INGENIC, T31ZL
Lens Brand And Model
HS-Q118
Lens Focal Length
2.5mm
Aperture
F2.2
Power Supply
DC 5V1.5A, AC 8~24V
Working Power Consumption
0.75W
Standby Power Consumption
1.3mW
Live Stream Video Resolution
FHD(1536*2048) / SD(432*576)
Notification Image Resolution
SD(432*576)
Live Stream Effective Pixels
3MP
Optical pixel or lmage interpolation
Hardware straight out
Angle of View (H/V/D)
100°(Horizontal) * 135°(Vertical) * 170°(Diagonal)
Microphone Sensitive
-38dB
Noise Reduction
3D NR
Audio Input
Built-in 38db Mic
Audio Output
Built-in 8ohms Speaker
Audio Compression
G711U
Video Compression
H.265 / H.264
Frame Rate
Main Stream (HD) : 1Mbps; Substream (SD) : 384Kbps
IR CUT
Support
IR Distance
5m
Number Of Infrared Lamp Beads
4pcs
Night Vision Mode
Black & White mode
Wireless Standard
Wi-Fi IEEE 802.11 b/g/n
Wireless Frequency
2412 MHz ~ 2472 MHz
Wireless Encryption Protocol
WEP/WPA-PSK/WPA2-PSK
Working Temperature
-20°C - +50°C
Working Humidity
10~95%RH (no condensation)
Pairing Method
BLE mode, QR code
Two-way Talk
Motion Detection
Video Recording Duration
15s / 20s / 30s / 45s / 60s / 90s / 120s / Early Termination
Alarm time interval
Alarm Sensitivity Level
Low / High
Surveillance Area Setting
Humanoid Filtering
Alarm Timer Settings
Privacy Zones
Anti Dismantling Alarm
Cloud Storage
Web RTC
Quick Reply to Message
Auto Reply Library
Duration of Visitor's Message
5s / 10s
Call Timeout
10s - 25s Adjustable
Voice Change
Siren Alarm
Anti Flicker
Local Storage SD Slot
up to 128GB
Voice Solution Configuration
Amazon Alexa, Google Assistant
Battery Type
2 * 18650 Rechargeable Lithium Battery
Battery Capacity
5200mAh
Battery Charging Time (Input DC 5V1A)
8 hours
Battery Life
supports 4-5 months,trigger 5 times a day

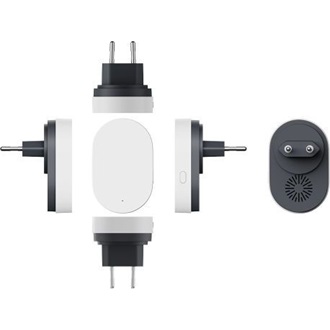

Chime
Support and included
Chime Volume
Low / Medium / High / Off
Chime Beep
8 Kinds
Number of Beep Cycles
1 / 2 / 3 Time
Approved Certification
CE-RED, ROHS, REACH
