Model

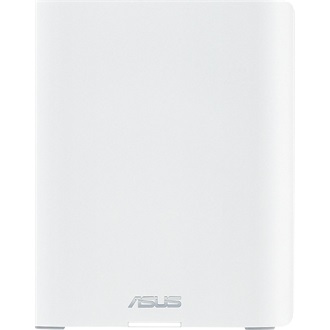

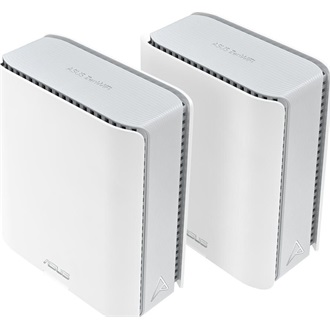

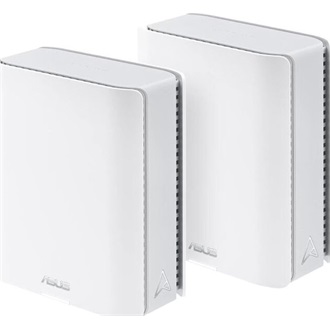

ASUS ZenWiFi BT8
Model Name
BT8(W-2-PK)BT8(W-3-PK)BT8(W-1-PK)
Network Standard
IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)WiFi 6E (802.11ax)WiFi 7 (802.11be)IPv4IPv6
Product Segment
BE14000 ultimate BE performance : 688+4323+8643 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 MbpsWiFi 7 (802.11be) (5GHz): up to 4323 MbpsWiFi 7 (802.11be) (6GHz): up to 8643 Mbps
Antenna
Internal antennas x 7
Transmit / Receive
2.4GHz 2x25GHz 3x36GHz 3x3
Memory
RAM 1GB , Flash 128MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz5 GHz6 GHz
Operating Mode
Wireless Router ModeAiMesh Node ModeAccess Point Mode

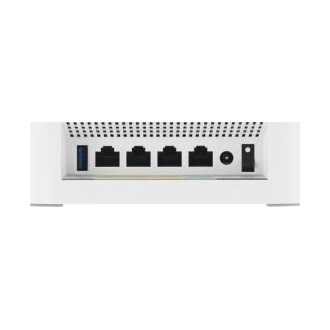

I/O Ports
2.5G WAN x 12.5G LAN x 11G LAN x 2USB 3.0 x1
Buttons
WPS button, Reset button, Power switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 12V with max. 3A current
Package Content
ZenWiFi BT8RJ45 cablePower adapterWarranty cardQuick start guide
Product Dimensions
159 x 72 x 186 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh• Primary AiMesh Router• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."Web & Apps FiltersTime SchedulingRewardParental Control - Safe BrowsingCustomized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."Support Guest Network
Security
AiProtectionVPNWPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseWPSLet's EncryptDNS-over-TLSSecurity ScanFirewall
AiProtection
AiProtection Pro• Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking
VPN
Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN Fusion
Traffic Control
Adaptive QoS• Bandwidth Monitor• Bandwidth LimiterTraditional QoSTraffic MonitorTraffic Analyzer• Website History
WAN
Dual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort ForwardingPort TriggeringDMZDDNS
LAN
DHCP ServerIGMP SnoopingIPTVLAN Link AggregationManually Assign IP AddressWake on LAN (WOL)
Wireless
MU-MIMOUTF-8 SSIDWiFi MAC Address FilterWireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming
USB application
4G / 5G Auto Mobile TetheringHDD HibernationSafely Remove DiskAiCloudDownload MasterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder Privileges
Administration
Diagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update
Smart Home
Support Google Assistant
