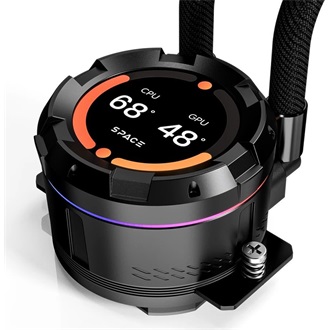

LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
2.1 inch
Resolution
480x480
Backlight
600cd/m²
Color
24-bit, 16.7 million
Compatibility
Intel LGA1851/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
350W
Radiator Dimension
396×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
465mm
Waterblock Dimension
76x76x58mm
Cold Plate Material
Copper
Pump Current
0.36A Max.
Pump Speed
2800RPM±10%
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
27.2dB(A)
Fan Model
AS-120-K
Fan Dimension
120×120×25mm
Included Fans
3pcs
Fan Speed
300~2000±10%RPM
Max. Air Flow
58CFM
Max. Static Pressure
1.94mmH2O
Noise
27.2dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Rated Current
0.1A
Power Input
1.2W
Bearing Type
Hydraulic Bearing
Connector
4Pin PWM
