LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
1.48 inch
Resolution
240x240 px
Backlight
300cd/m²
Color
18-bit, 262K
Compatibility
Intel LGA1851/1700/1200/115X
AMD AM5/AM4
TDP
350W
Radiator Dimension
396×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
420mm

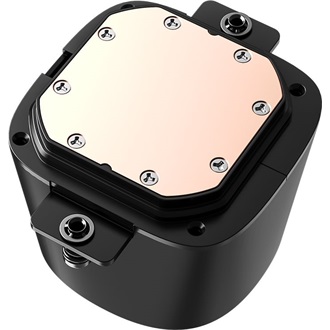

Waterblock Dimension
73x69x57mm
Cold Plate Material
Copper
Pump Current
0.45A Max.
Pump Speed
2900RPM±10%(PWM)
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
25dB(A)
Fan Model
AS-120-ARGB V2
Fan Dimension
120×120×25mm
Included Fans
3pcs
Fan Speed
300~2000±10%RPM
Max. Air Flow
58CFM
Max. Static Pressure
1.94mmH2O
Noise
27.2dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Rated Current
0.15A
Power Input
1.8W
Bearing Type
Hydraulic Bearing
Connector
7-pin (4-pin PWM + 5V 3-pin ARGB)
