LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
1.48 inch
Resolution
240x240 px
Backlight
300cd/m²
Color
18-bit, 262K
Compatibility
Intel LGA1851/1700/1200/115X
AMD AM5/AM4
TDP
350W

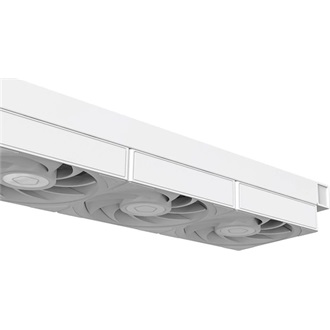

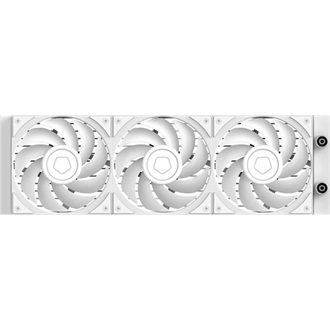

Radiator Dimension
396×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
420mm

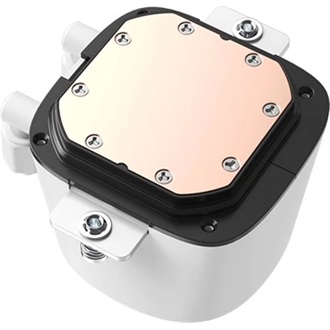

Waterblock Dimension
73x69x57mm
Cold Plate Material
Copper
Pump Current
0.45A Max.
Pump Speed
2900RPM±10%(PWM)
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
25dB(A)
Fan Model
AP-120-W
Fan Dimension
120×120×28mm
Included Fans
3pcs
Fan Speed
0~2450±10%RPM
Max. Air Flow
88.75CFM
Max. Static Pressure
4.35mmH2O
Noise
34.3dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Rated Current
0.22A
Power Input
2.64W
Bearing Type
Hydraulic Bearing
Connector
4-pin PWM
